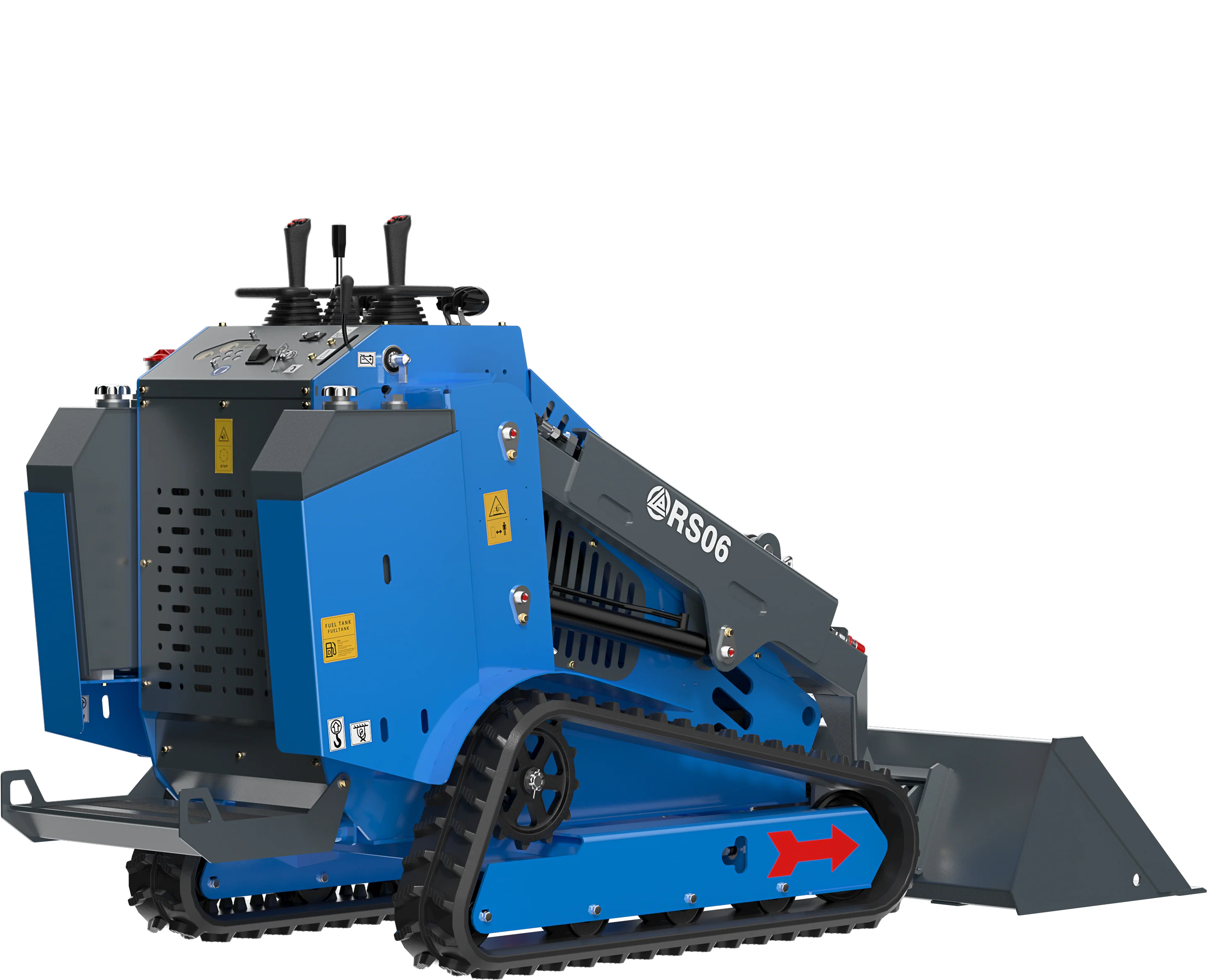

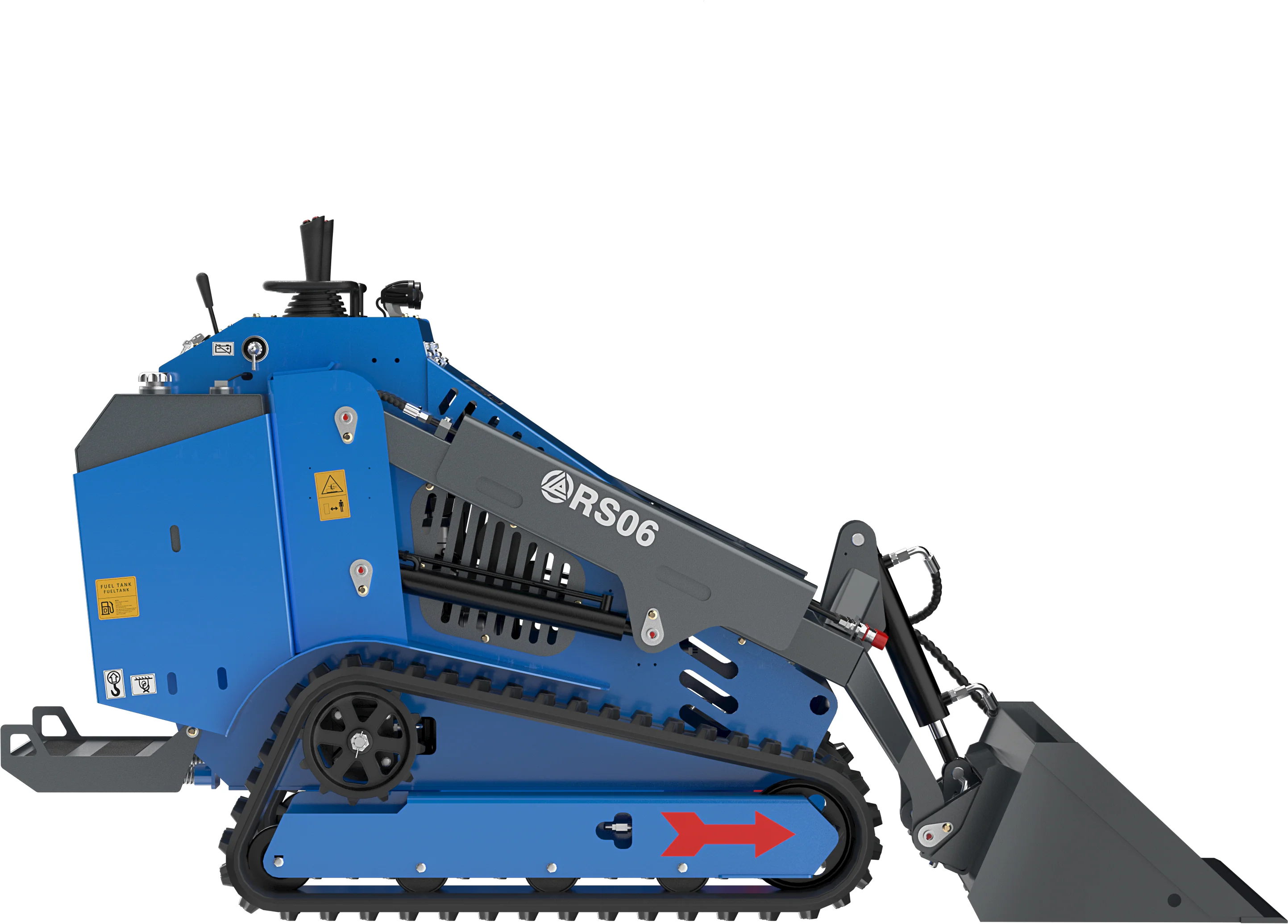

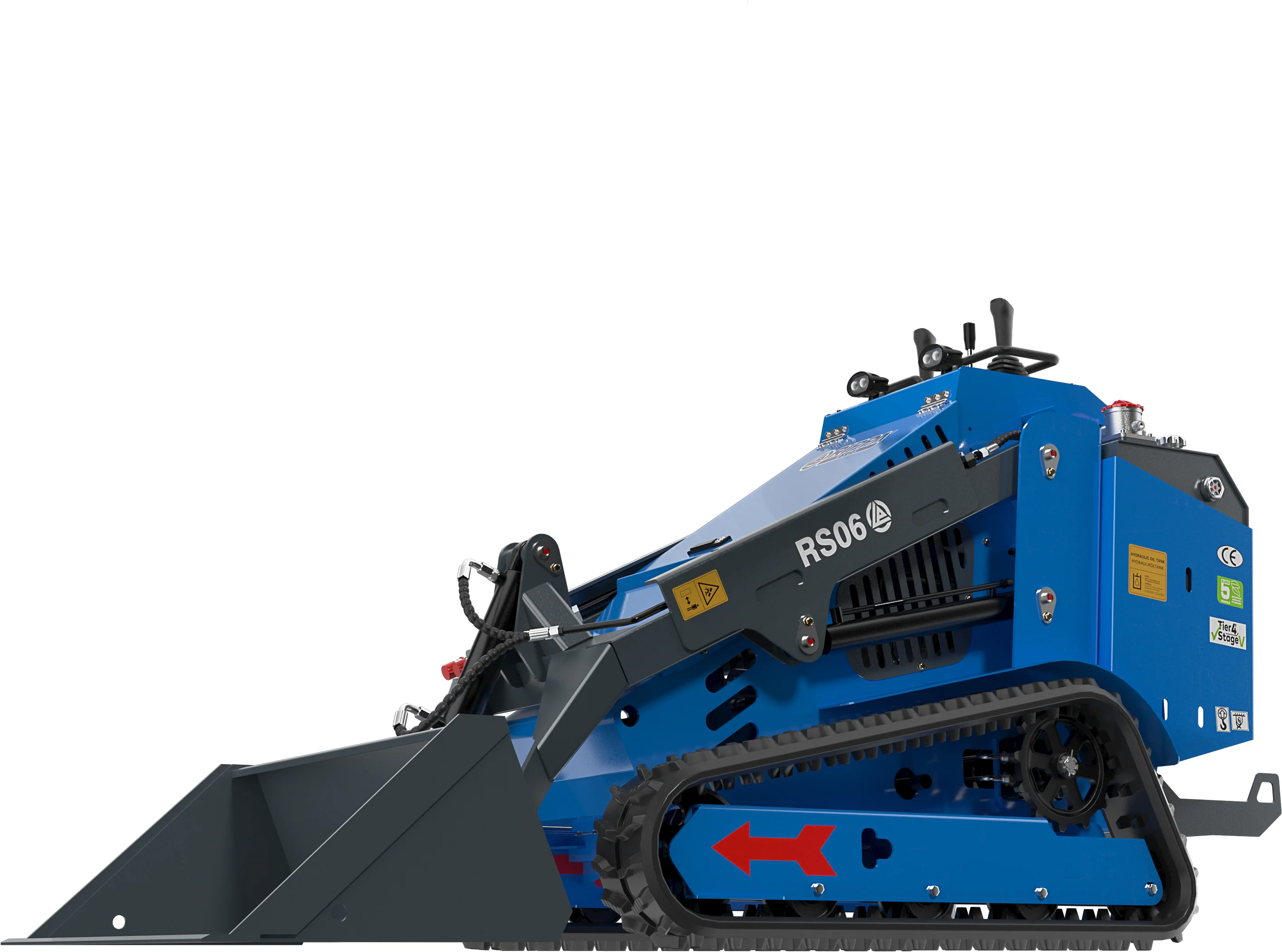

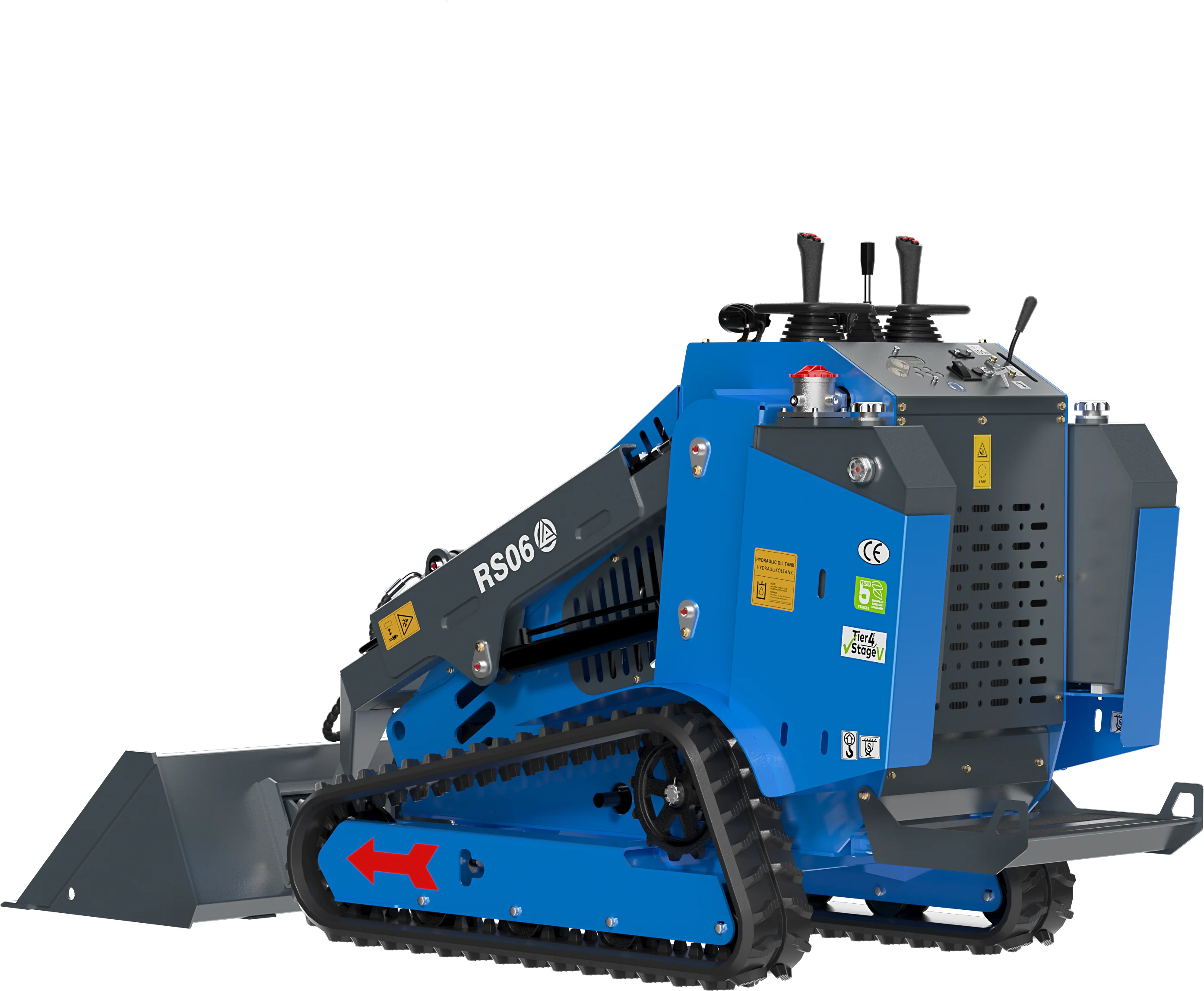

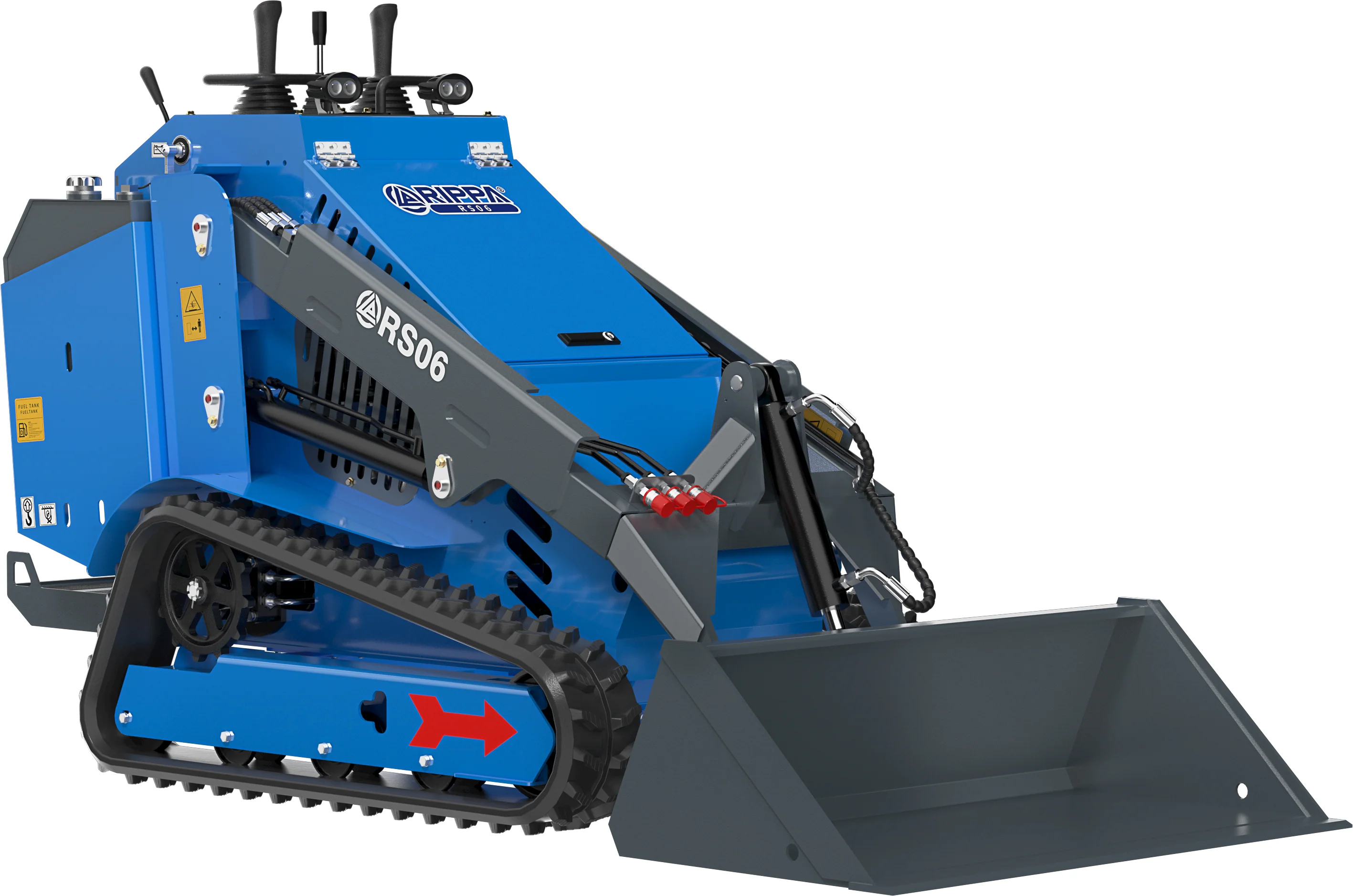

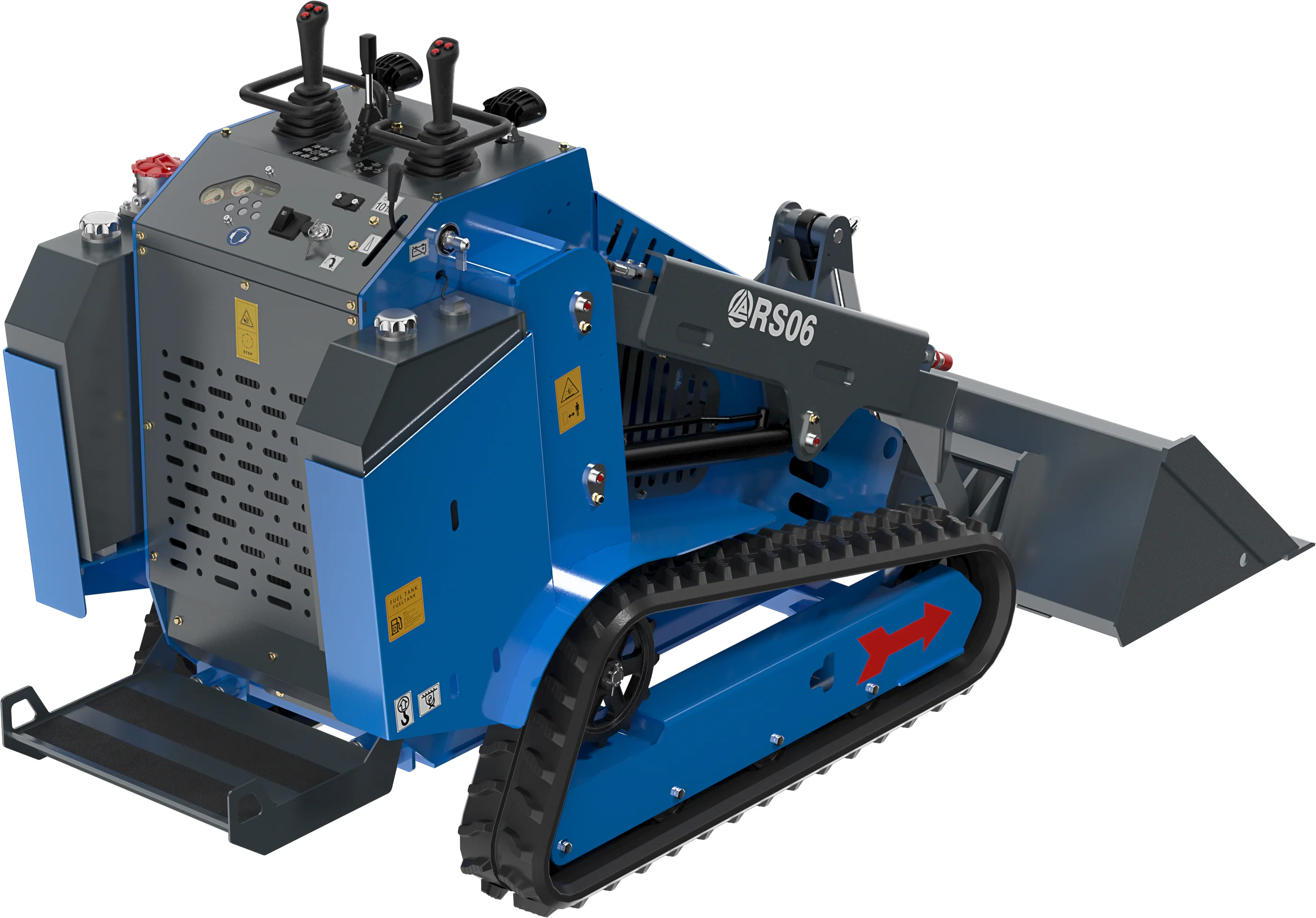

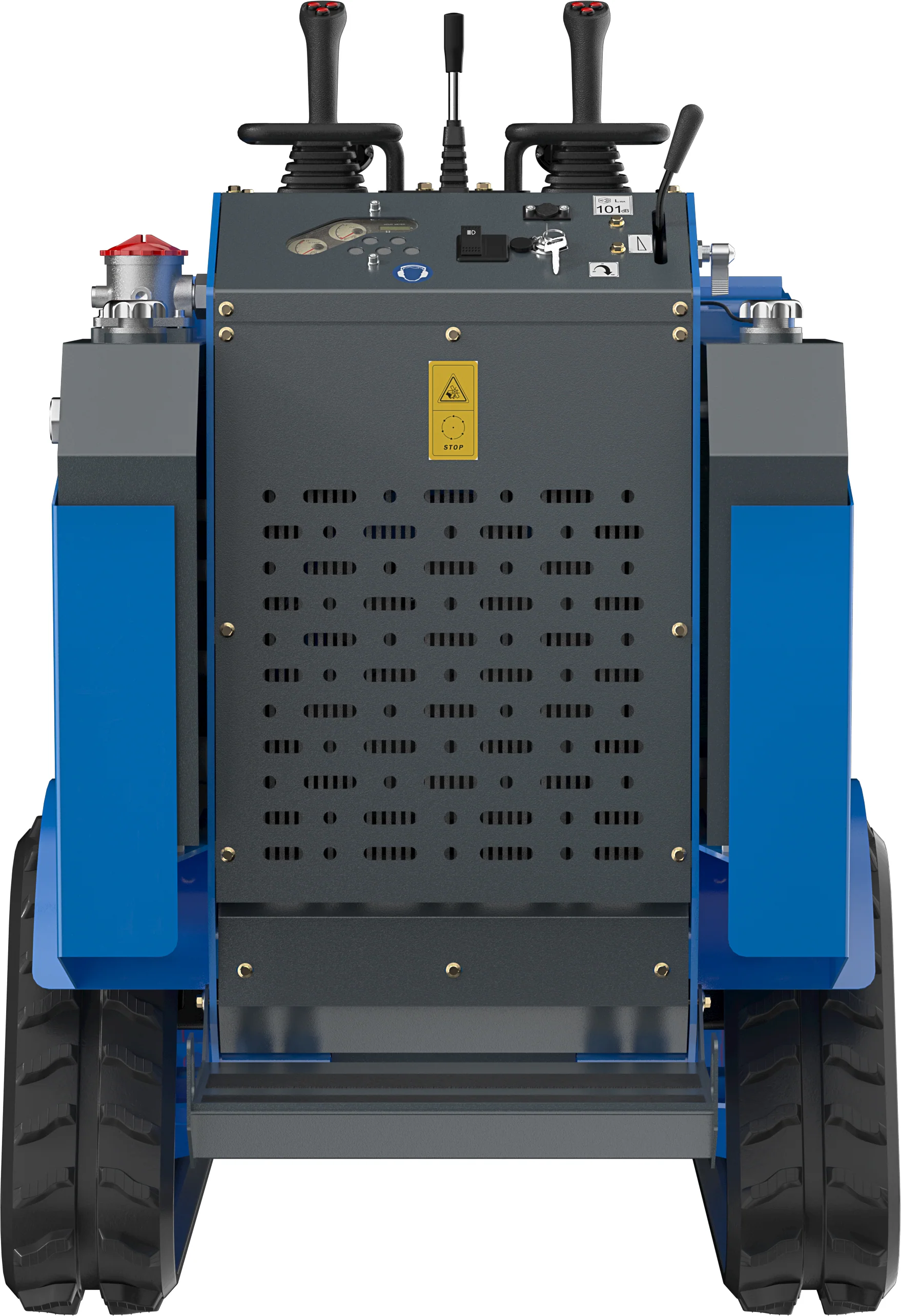

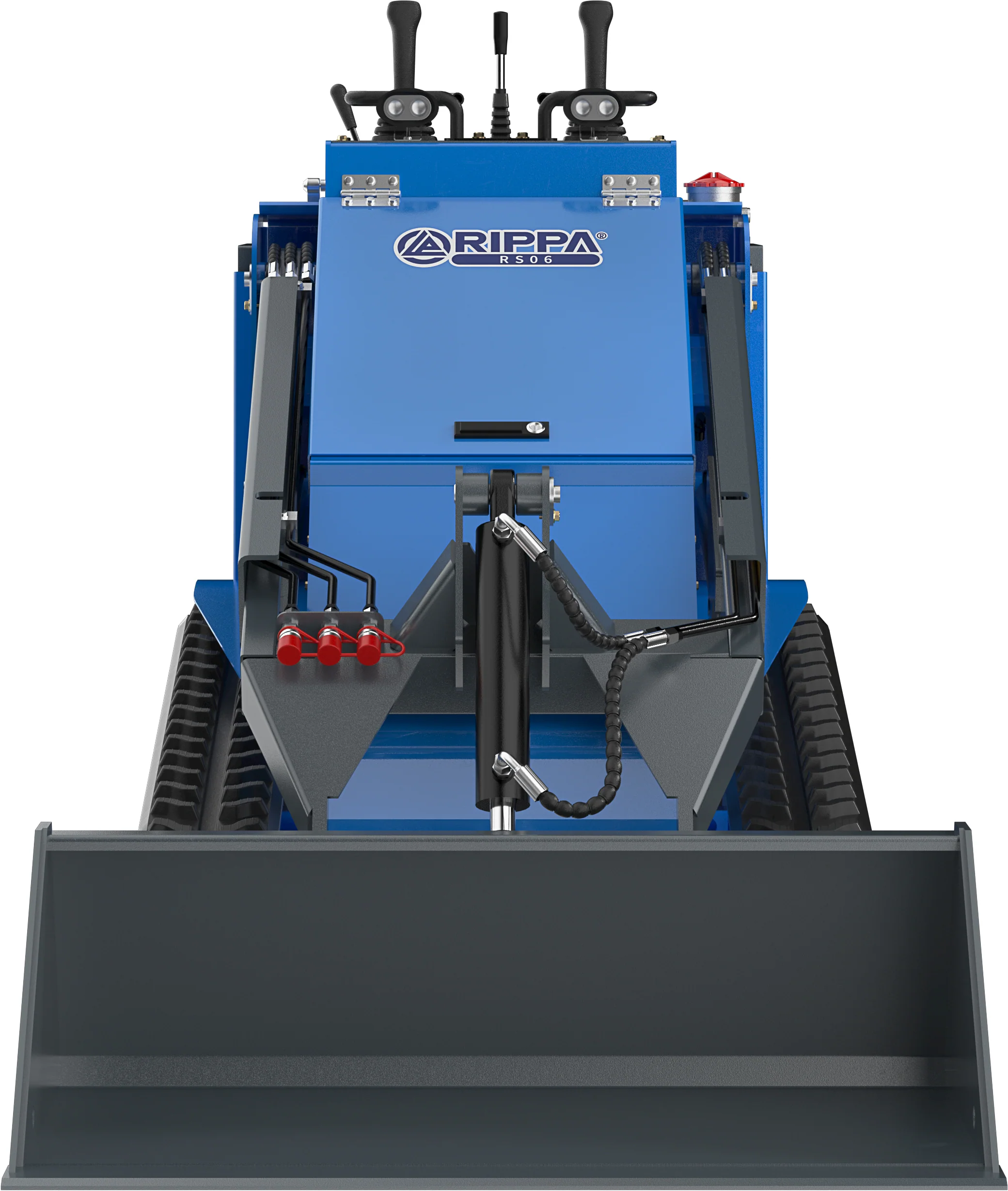

RS 06

Compact, powerful, versatile!

The RS 06 compact loader is the ideal solution for construction projects, agriculture, and landscaping. With its powerful Kubota diesel engine, high load capacity, and compact dimensions, it delivers maximum efficiency in confined spaces.

Whether for material transport, earthmoving, or cleaning – thanks to a wide range of attachments, the RS 06 adapts flexibly to your requirements.

RS06 – Specifications

Basic Performance Data	EU / US
Operating weight	1450 kg / 3197 lb
Bucket capacity	0.16 m³ / 5.65 ft³
Rated load	300 kg / 661 lb
Max. load	600 kg / 1323 lb
Travel speed	0–3 km/h (0–1.9 mph) / 0–6.5 km/h (0–4.0 mph)
Gradeability	28 % / 28 %
Ground pressure	32.5 kPa / 4.71 psi
Max. dumping height	1550 mm / 61.0 in
Max. loading height	2530 mm / 99.6 in
Max. dumping reach	645 mm / 25.4 in
Min. ground clearance	163 mm / 6.42 in

Engine	EU / US
Brand / Model	Kubota D1105
Max. horsepower	25 PS / 24.6 hp
Max. power	18.2 kW / 24.4 hp
Max. speed	3000 rpm
Displacement	1.123 L / 68.5 in³
Cylinders	3
Cooling method	Water-cooled
Engine oil capacity	4 L / 4.23 qt
Fuel type / grade	Diesel (No. 0 / -10)
Theoretical consumption	1.3–1.5 L/h / 0.34–0.40 US gal/h

Dimensions	EU / US
Transport length with bucket	2710 mm / 106.7 in
Transport length without bucket	2220 mm / 87.4 in
Transport width	1150 mm / 45.3 in
Transport height	1522 mm / 59.9 in
Bucket width	1150 mm / 45.3 in

Tanks	EU / US
Fuel tank	20 L / 5.28 US gal
Hydraulic oil tank	28 L / 7.39 US gal

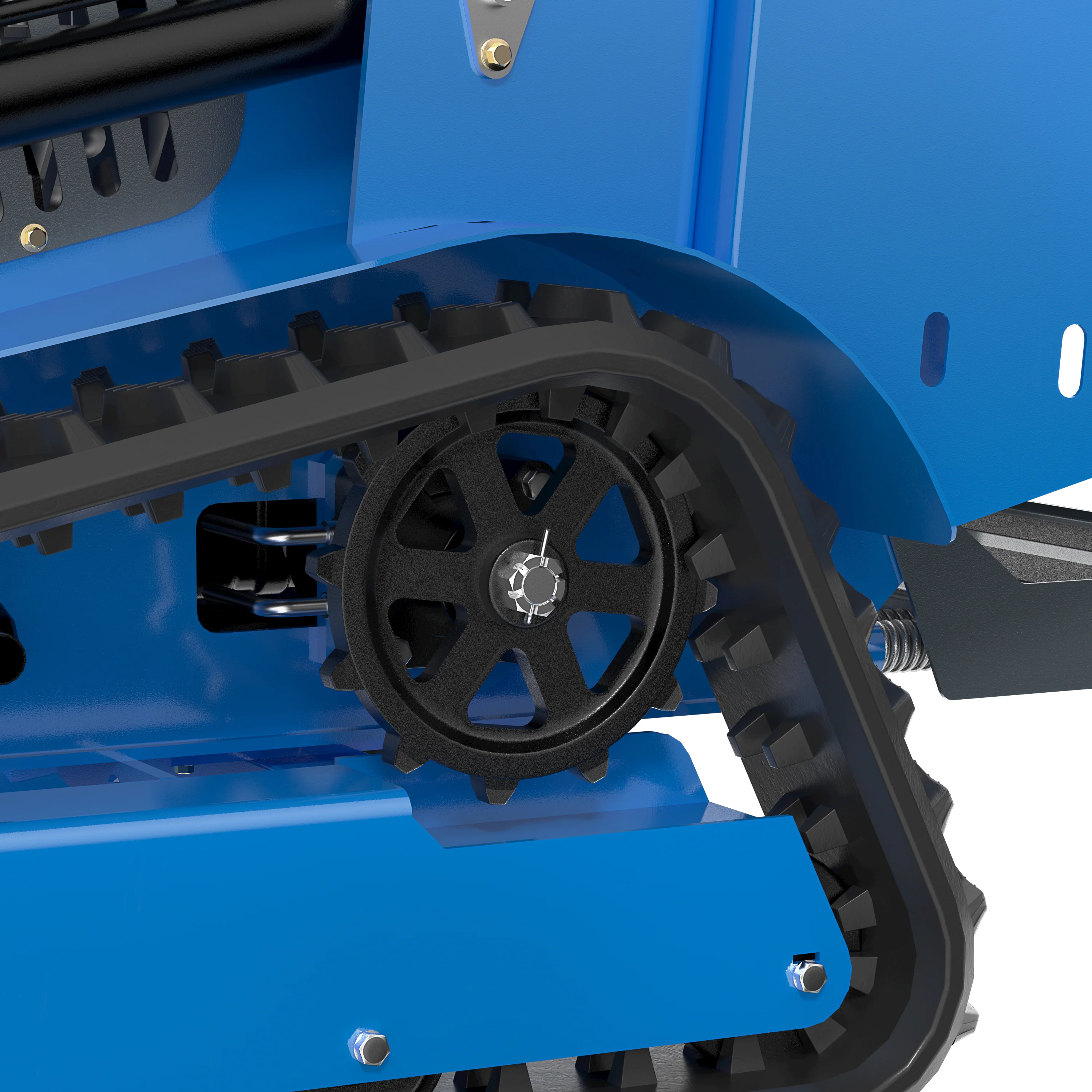

Track	EU / US
Dimensions	230 mm × 72 mm × 45 links / 9.06 in × 2.83 in × 45 links

Hydraulic System	EU / US
Main pump type / model	Plunger Pump (HYTEK)
Max. flow main pump	112.5 L/min / 29.7 US gal/min
Control valve	Load-sensing control valve
Set pressure	22.5 MPa / 3263 psi
Travel motor	Two-stage travel motor (Paiyi) – 390 ml/r / 23.8 in³/r
