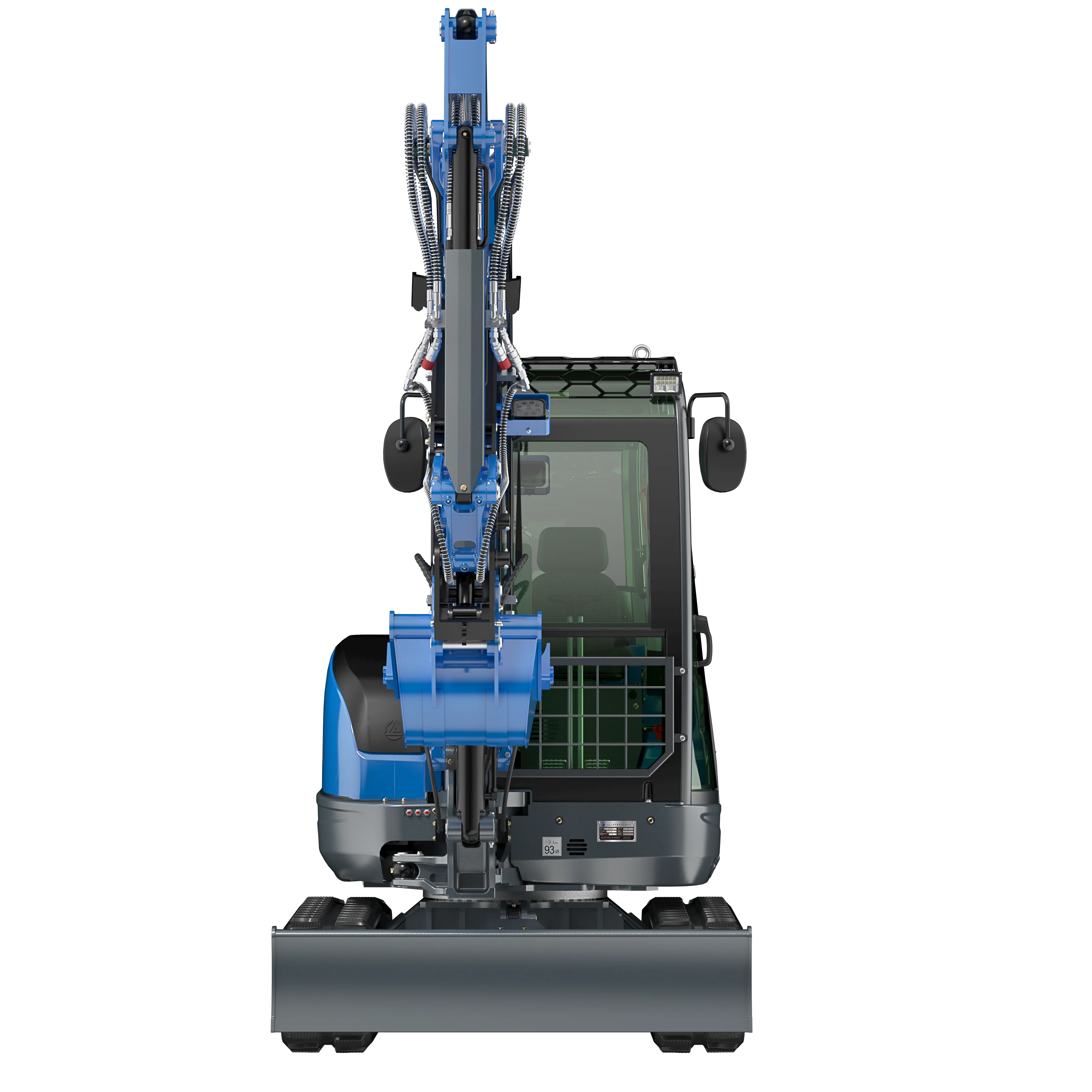

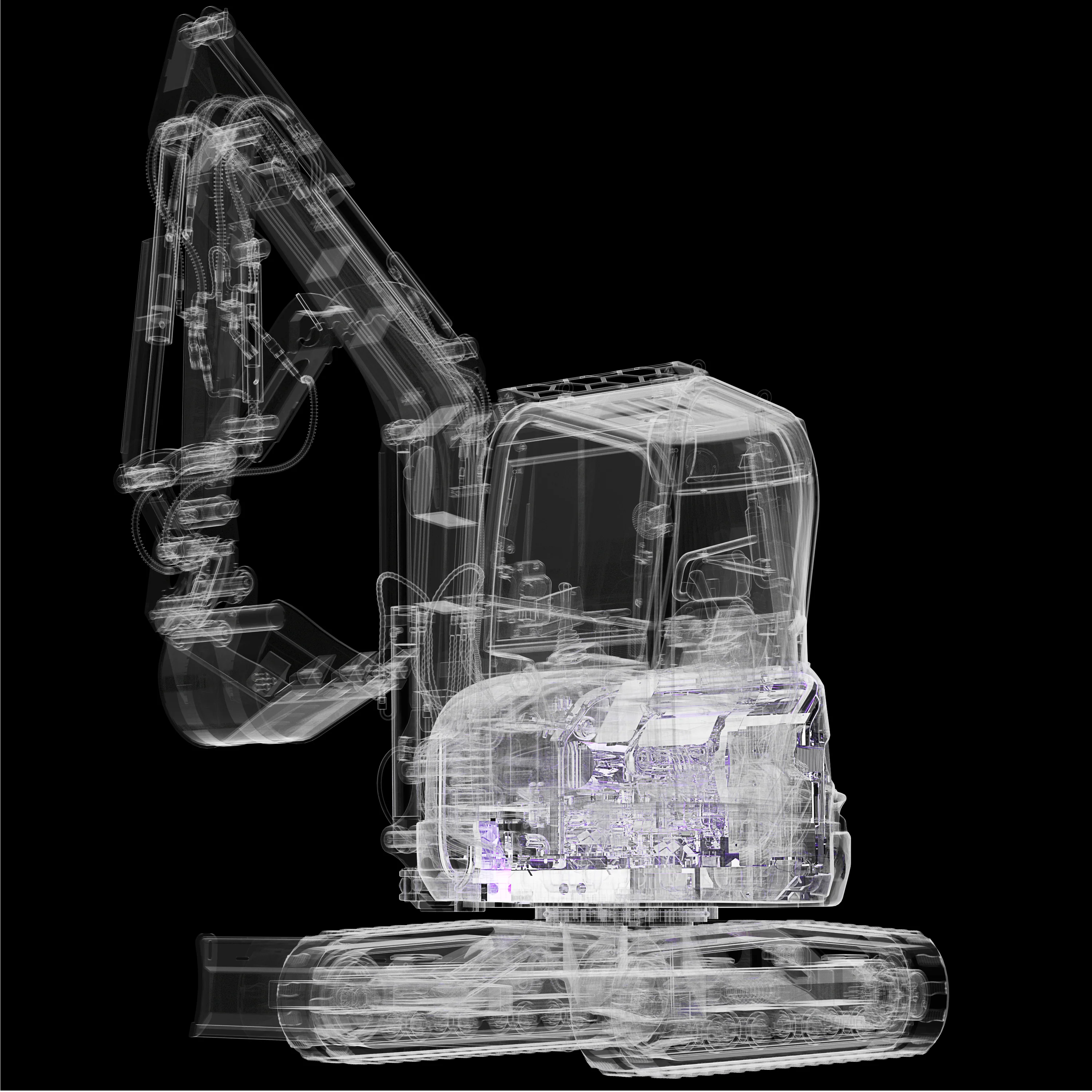

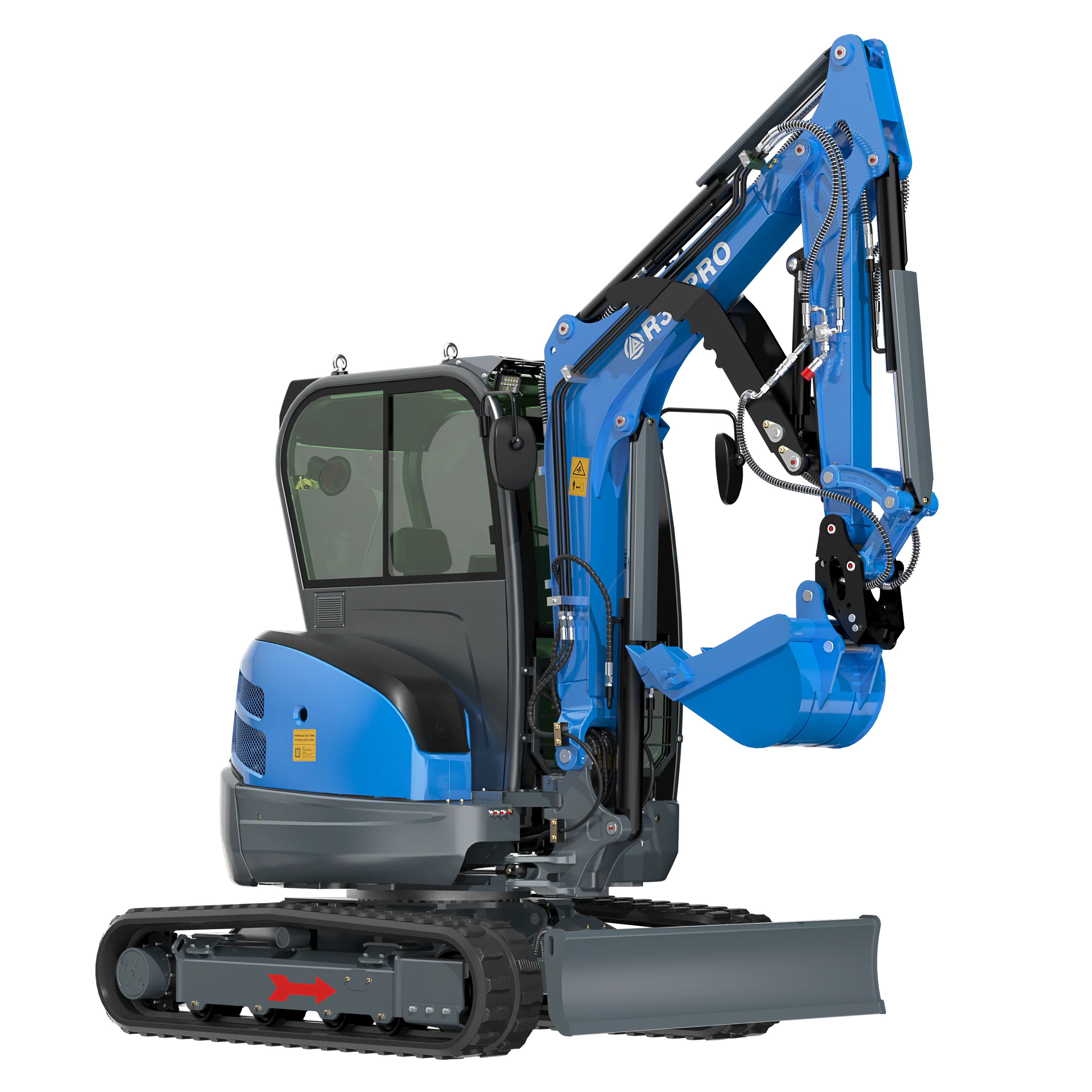

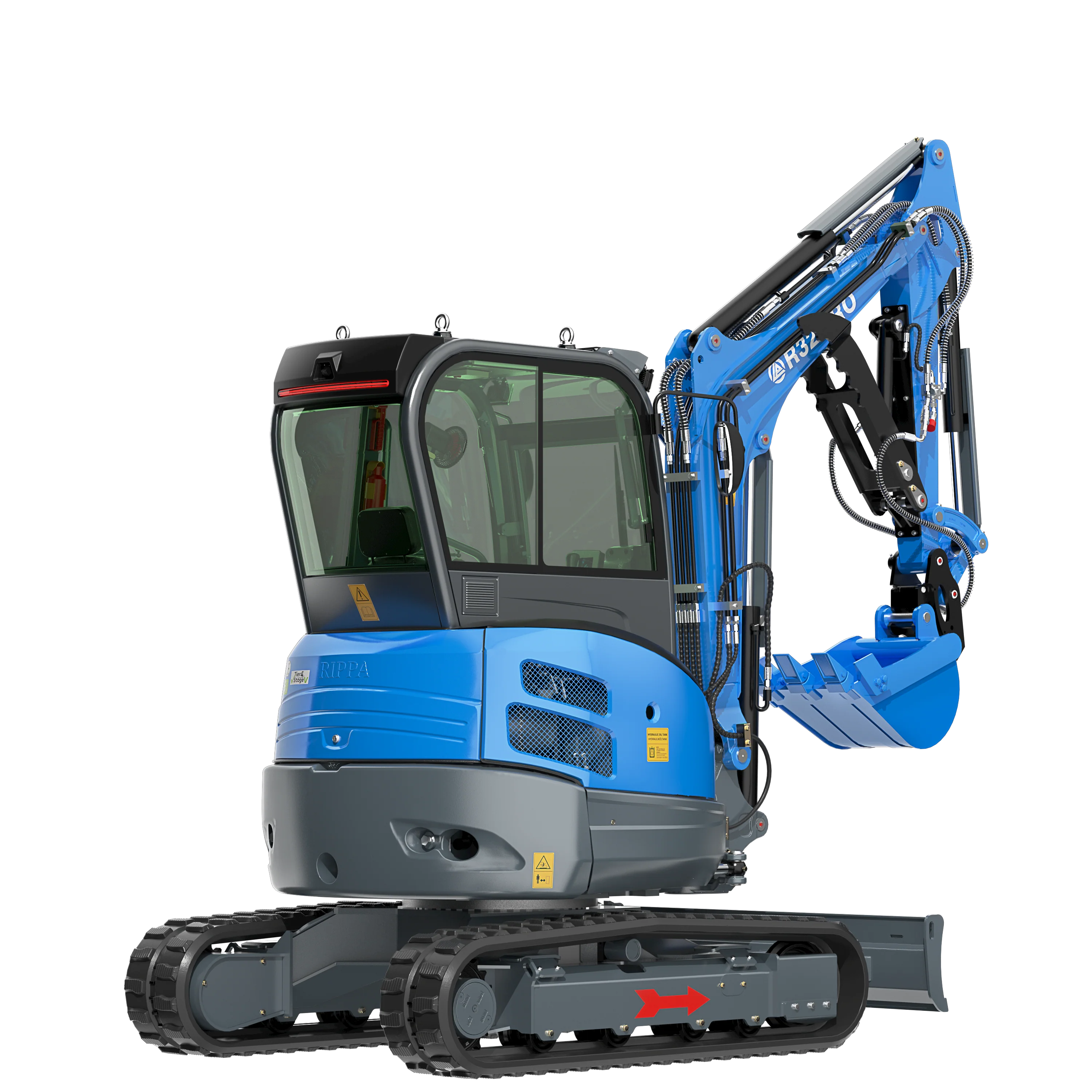

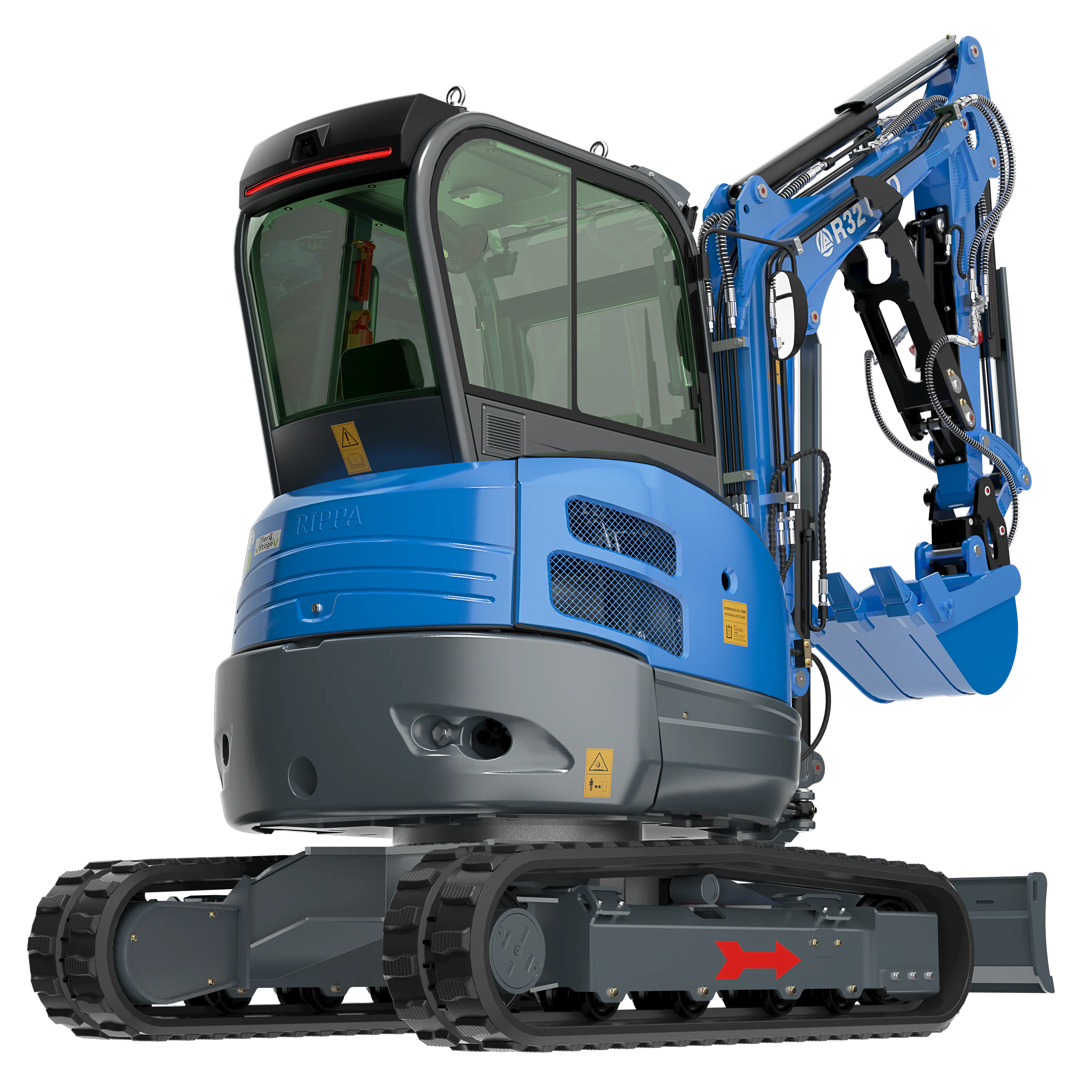

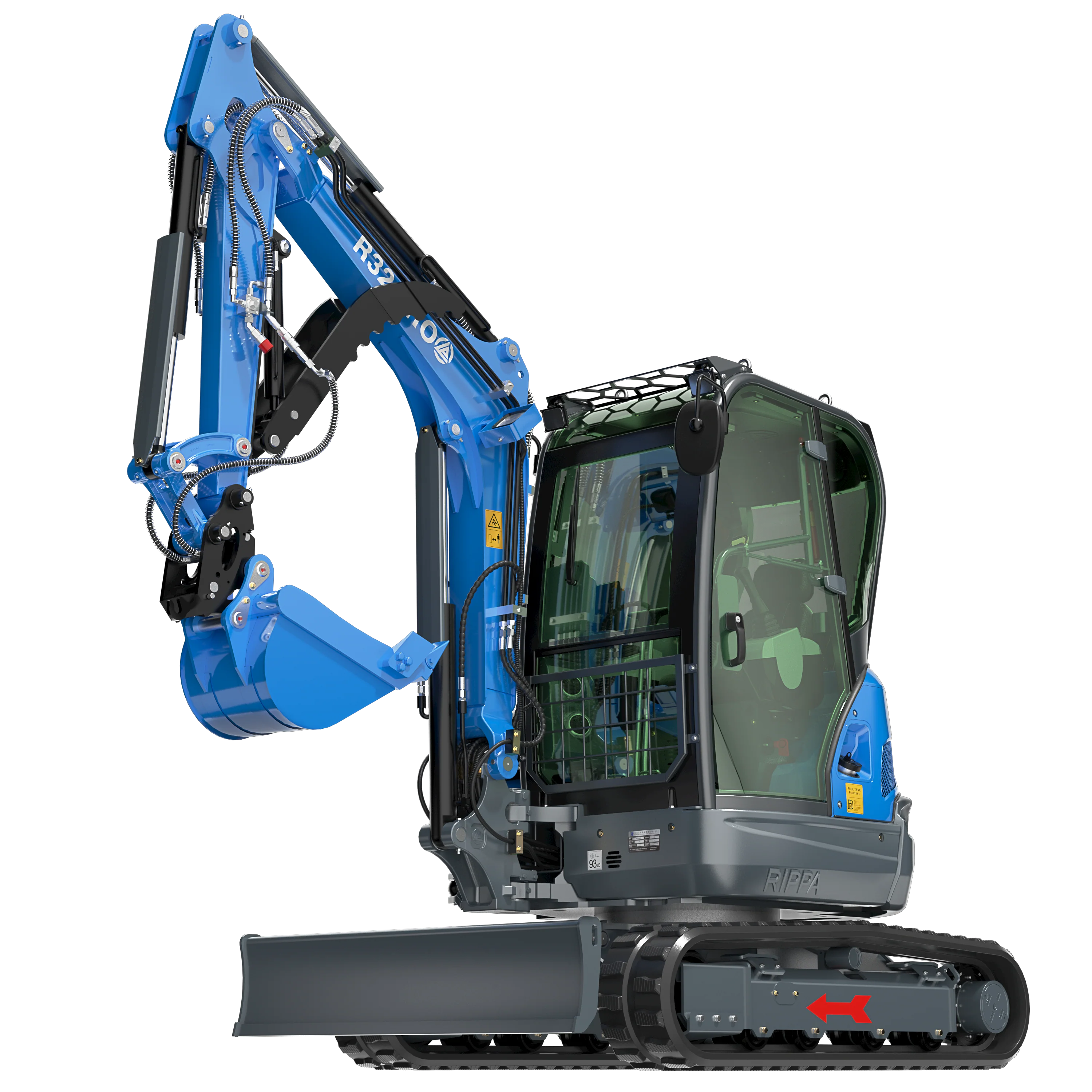

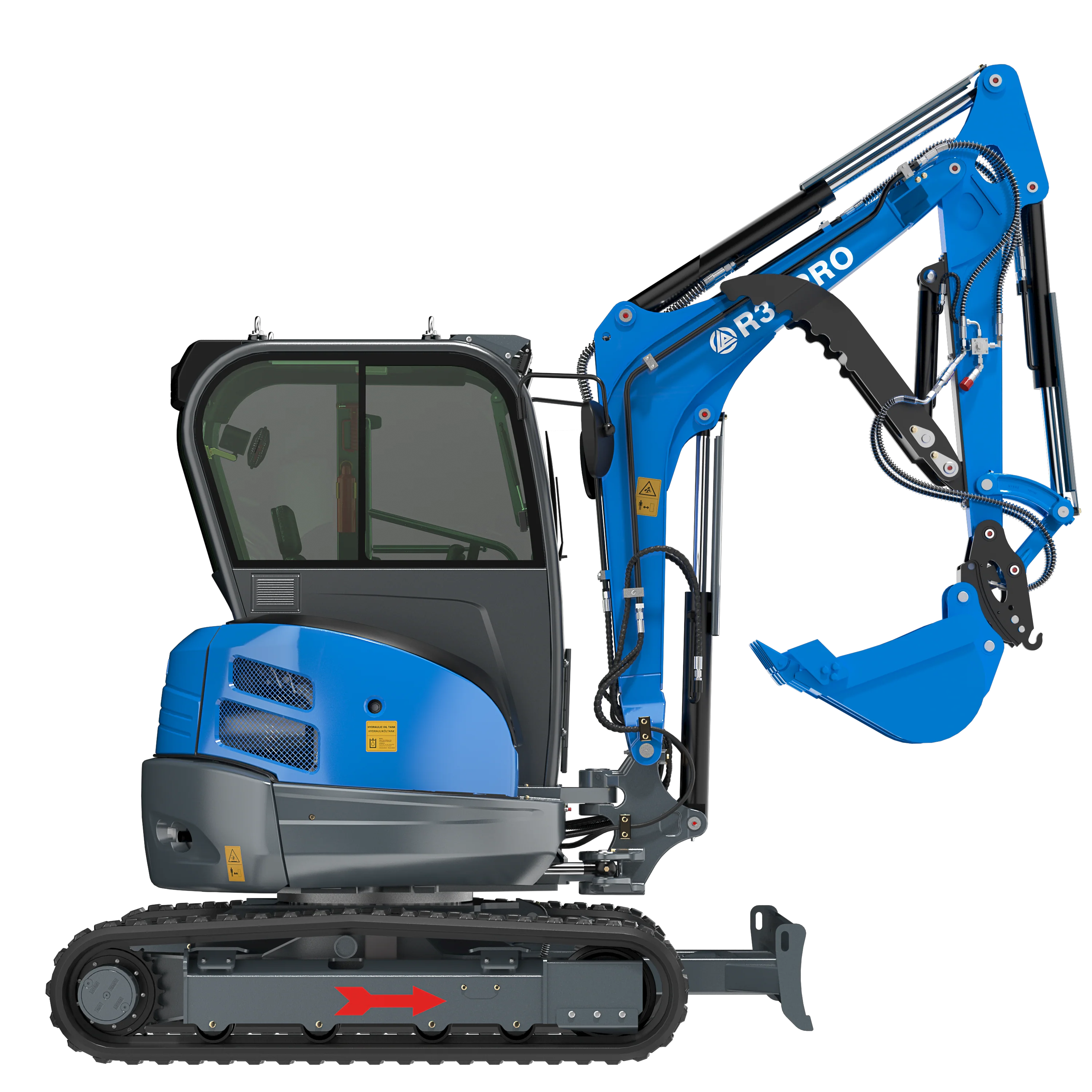

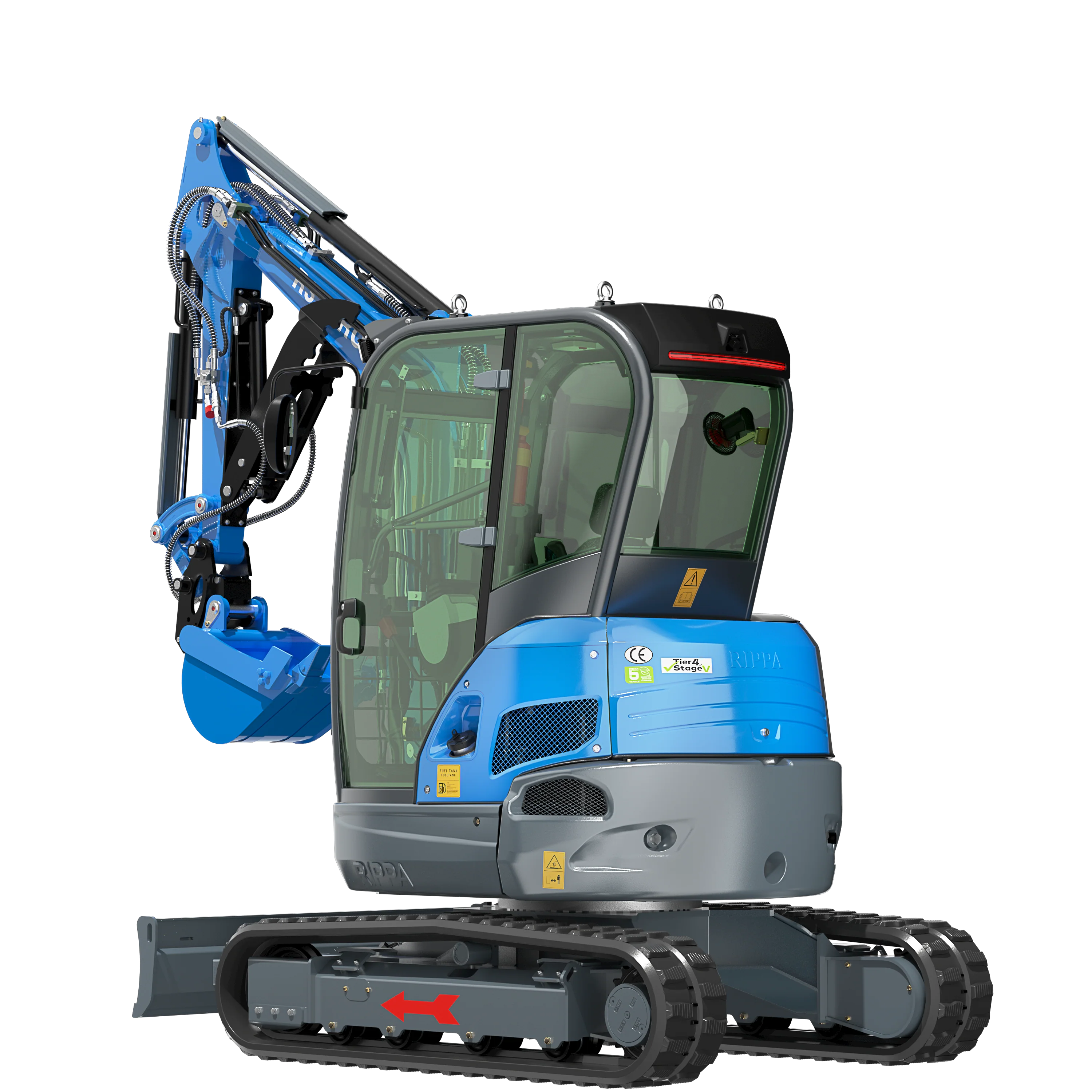

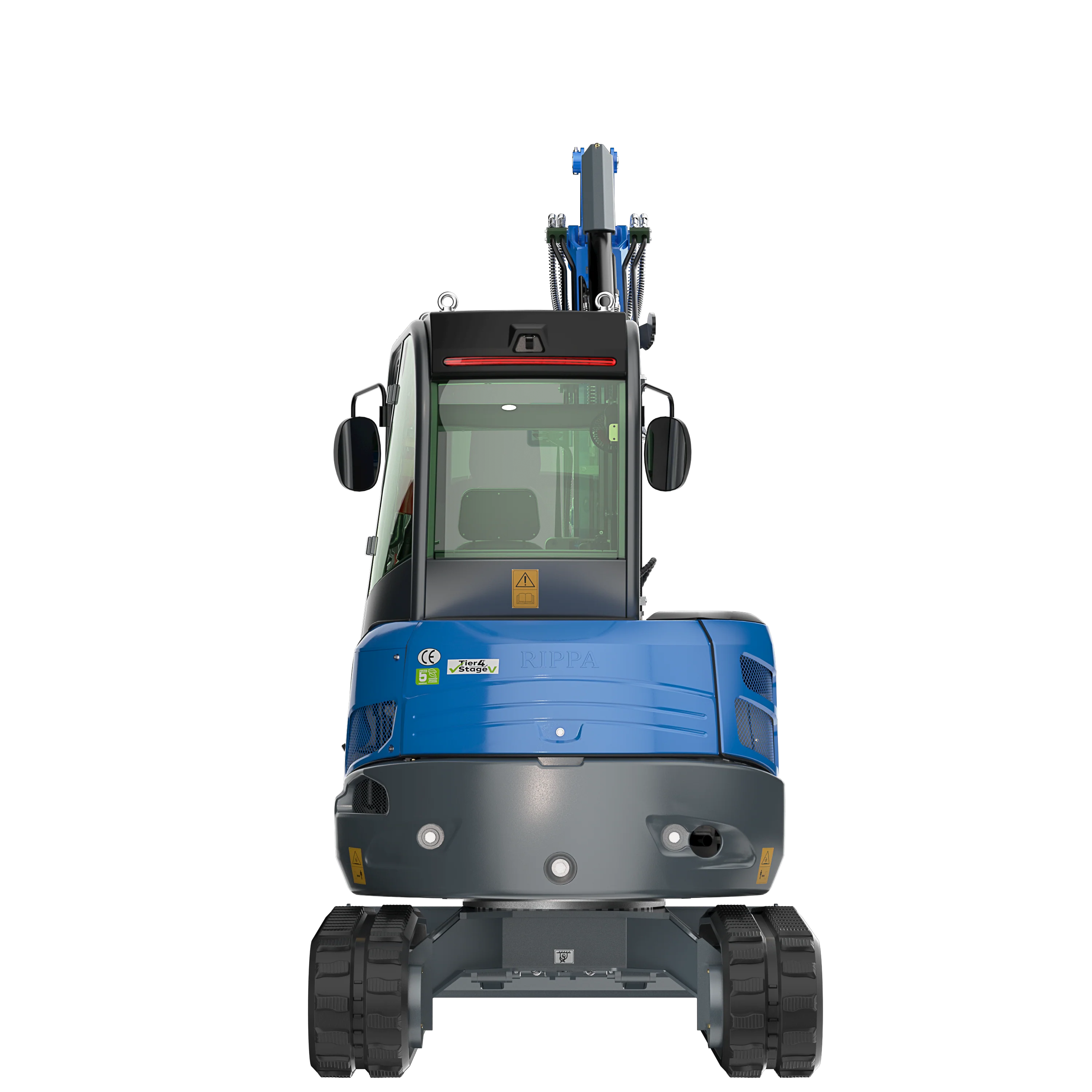

R32 PRO
The Rippa R32 PRO is a high-performance, professional mini excavator, ideal for large construction projects, deep excavation work, and demanding earthmoving operations. With its combination of massive power, precise control, and robust design, it’s the perfect choice for professionals who value efficiency and durability.
Powered by a strong Kubota diesel engine, the R32 PRO delivers outstanding performance with an operating weight of 3,375 kg, a digging depth of 2.83 meters, and a digging force of 27 kN – ensuring maximum productivity for every task.
Standard features include:
✔ 40 cm toothed bucket for precise digging
✔ Powerful Kubota diesel engine (Euro 5 certified)
✔ High digging force for heavy-duty excavation work
✔ Robust design for long-lasting professional use
Additional accessories, such as various buckets, grapples, or quick couplers, can be found in the “Accessories” section on our website.
R32 PRO – Specifications
| Basic Parameters | EU / US |
|---|---|
| Operating weight | 3200 kg / 7055 lb |
| Bucket capacity | 0.08 m³ / 2.83 ft³ |
| Travel speed | 0–3.2 km/h / 0–1.99 mph |
| Gradeability | 30 % / 30 % |
| Ground pressure | 36 kPa / 5.22 psi |
| Max. digging force | 27.0 kN / 27.0 kN |
| Max. digging radius | 4831 mm / 190.2 in |
| Max. digging depth | 2827 mm / 111.3 in |
| Max. digging height | 3181 mm / 125.3 in |
| Max. unloading height | 2500 mm / 98.4 in |
| Max. slewing angle | 120° / 120° |
| Track (Width×Pitch×Links) | 300 mm×100 mm×42 / 11.8 in×3.9 in×42 |
| Engine | EU / US |
|---|---|
| Brand | Kubota / Kubota |
| Model | V1505 / V1505 |
| Max. horsepower | 25.0 PS / 25.0 hp |
| Max. power | 18.5 kW / 18.5 kW |
| Max. speed | 2300 rpm / 2300 rpm |
| Displacement | 1.498 L / 0.40 gal |
| No. of cylinders | 4 / 4 |
| Cooling | Water-cooled / Water-cooled |
| Engine oil | 4.5 L / 1.19 gal |
| Fuel | Diesel / Diesel |
| Fuel grade | No. 0 / -10 / No. 0 / -10 |
| Theoretical consumption | 2.0–2.2 L/h / 0.53–0.58 gal/h |
| Dimensions | EU / US |
|---|---|
| Transport length | 3200 mm / 126.0 in |
| Transport width | 1500 mm / 59.1 in |
| Transport height | 2500 mm / 98.4 in |
| Ground clearance | 480 mm / 18.9 in |
| Bucket width | 650 mm / 25.6 in |
| Boom length | 2000 mm / 78.7 in |
| Arm length | 1200 mm / 47.2 in |
| Blade width | 1500 mm / 59.1 in |
| Hydraulic System | EU / US |
|---|---|
| Main pump type/model | CBGJ2120 / CBGJ2120 |
| Main pump brand | Tianjin Walking / Tianjin Walking |
| Max. flow | 40 L/min / 40 L/min |
| Control valve | 2–3 joints / 2–3 joints |
| Control valve brand | Tengfei / Tengfei |
| Rated pressure | 20 MPa / 20 MPa |
| Max. pressure | 22 MPa / 22 MPa |
| Travel motor | BM5-500 / BM5-500 |
| Travel motor brand | Paiyi / Paiyi |
| Travel motor displacement | 500 / 500 |
| Slewing motor | BM2-500 / BM2-500 |
| Slewing motor displacement | 500 / 500 |
