R06

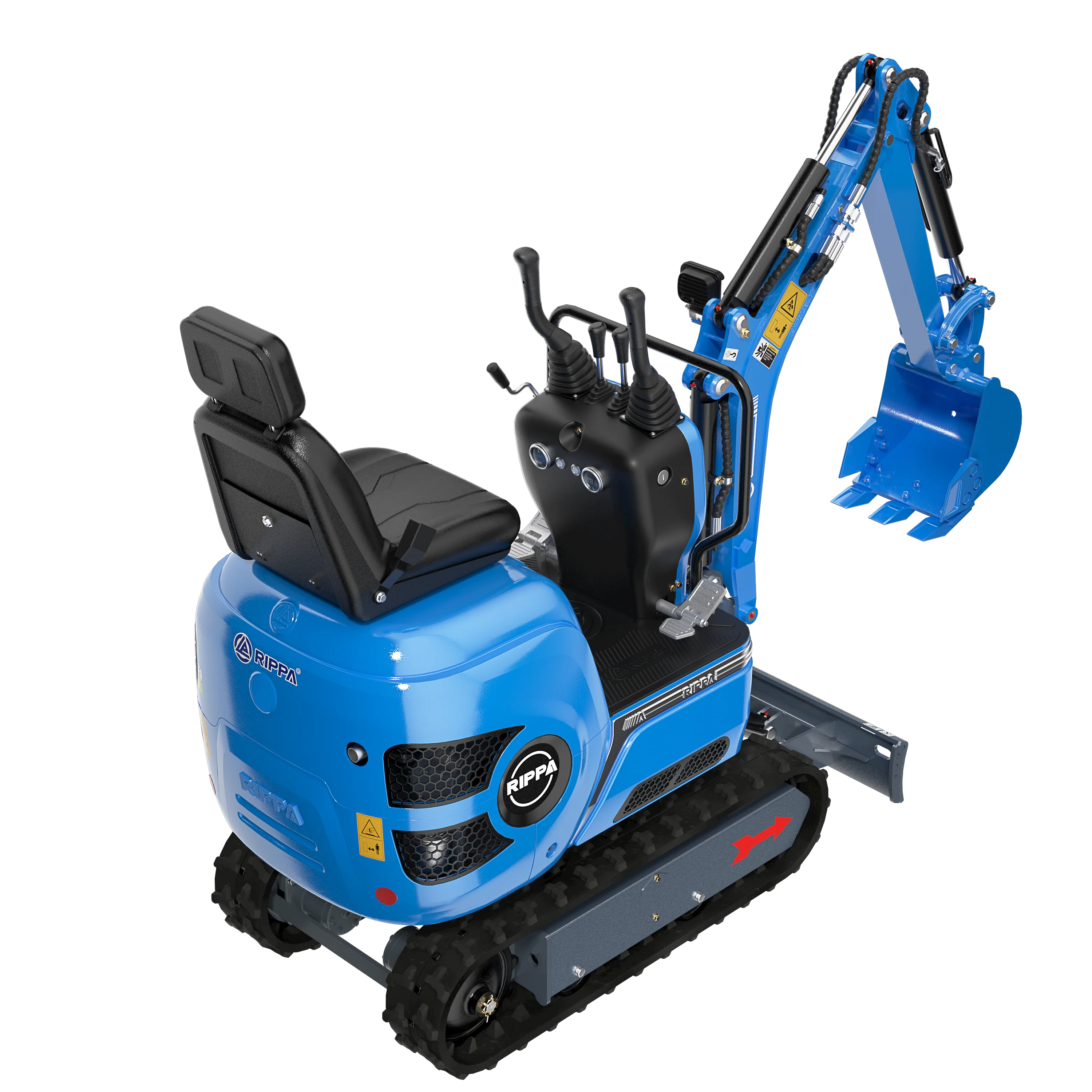

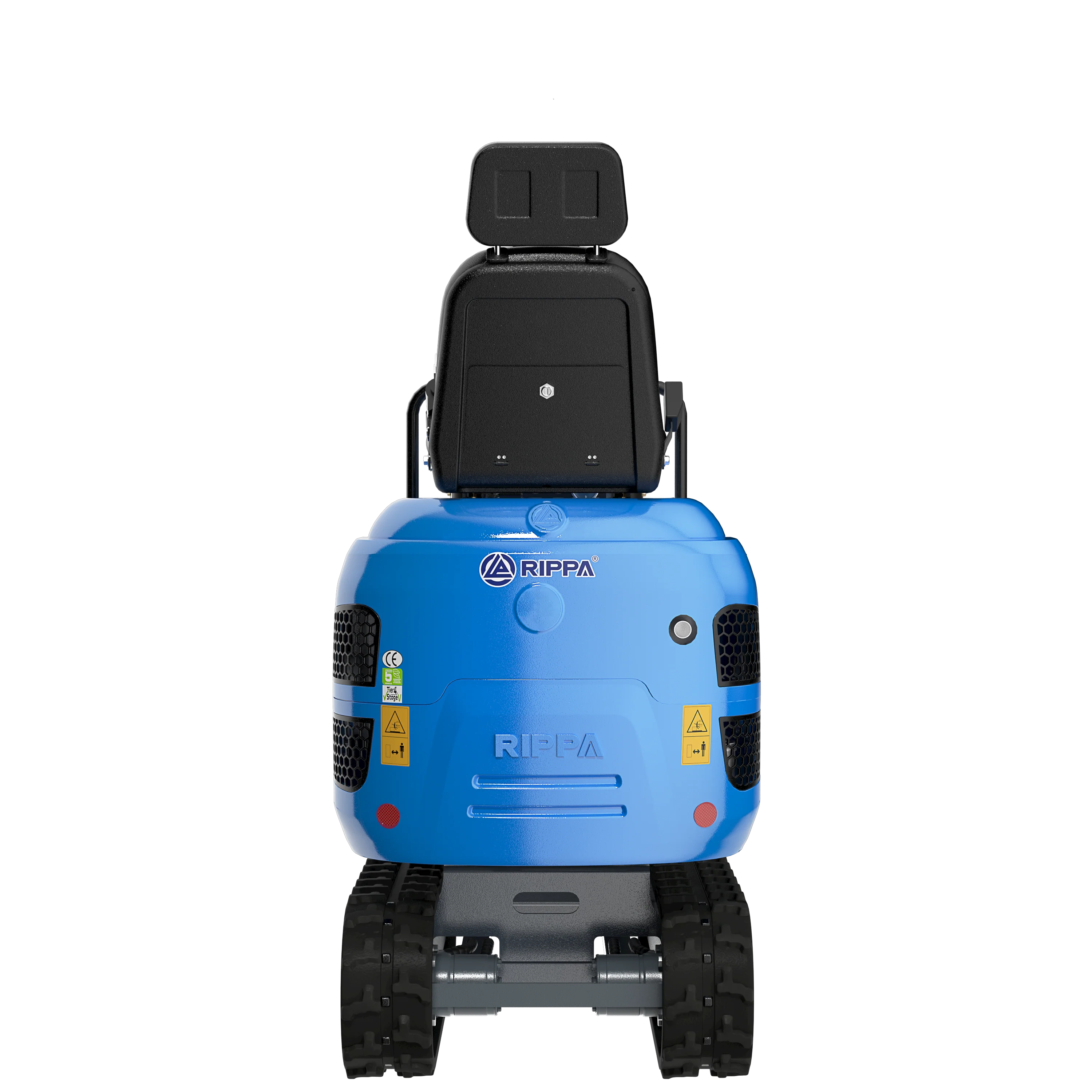

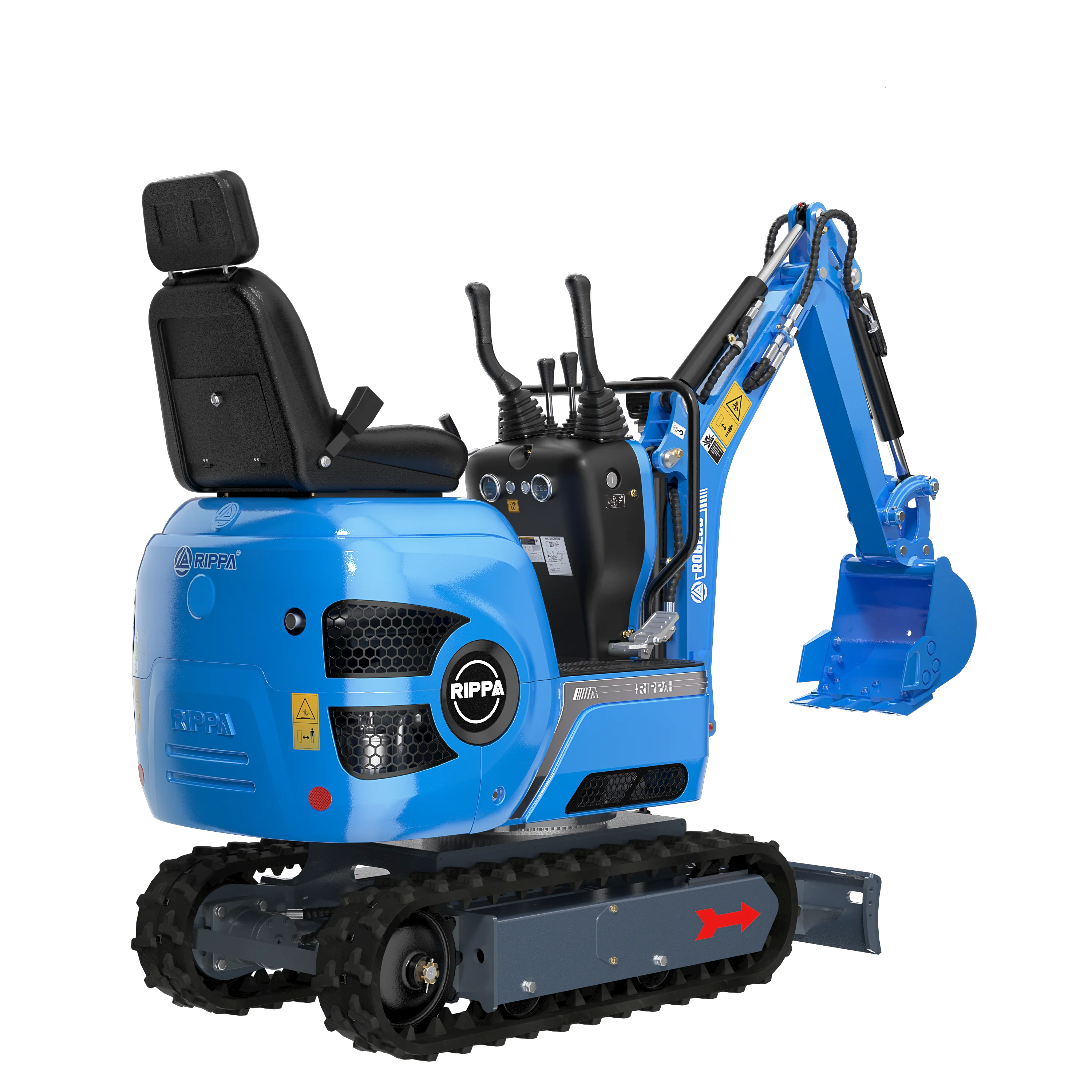

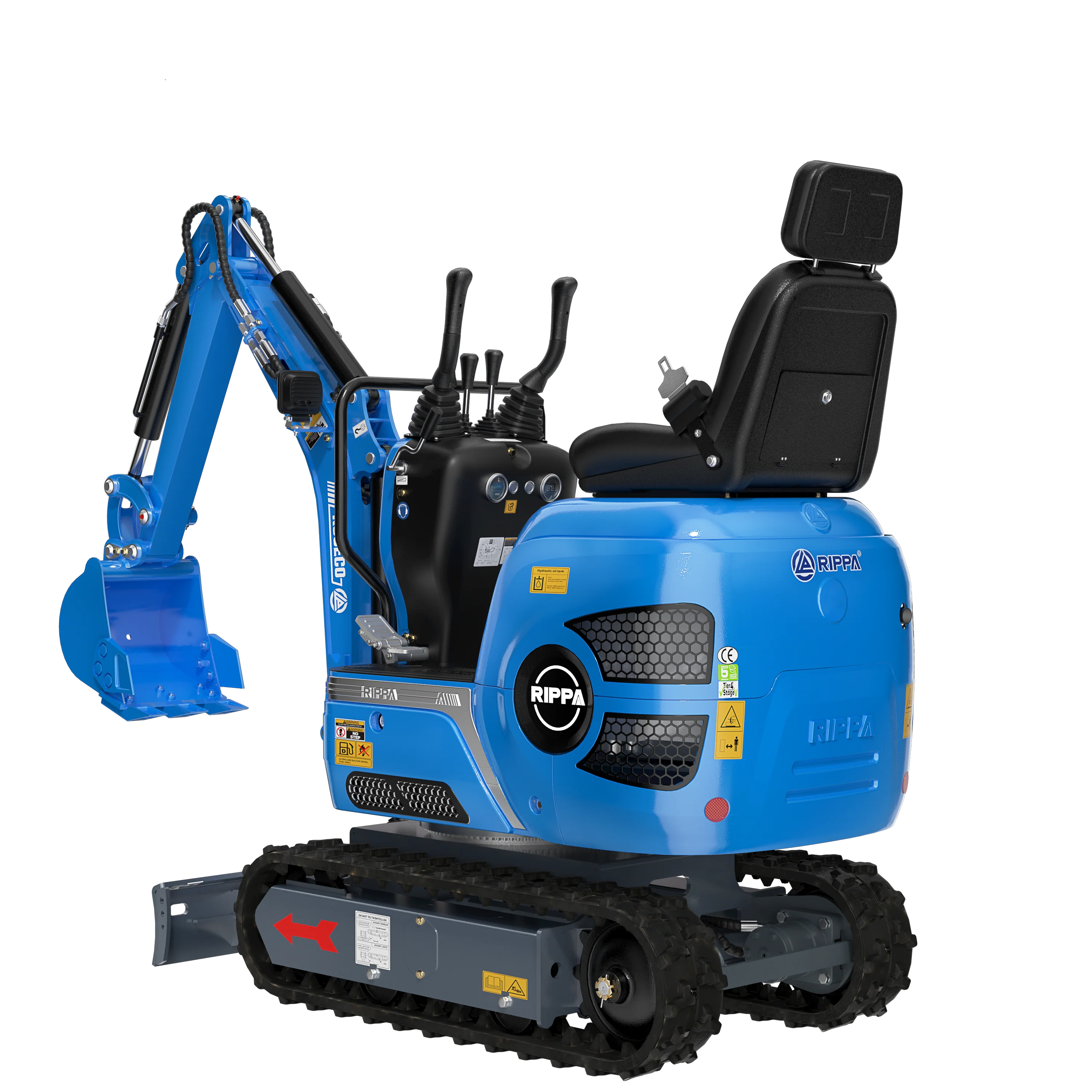

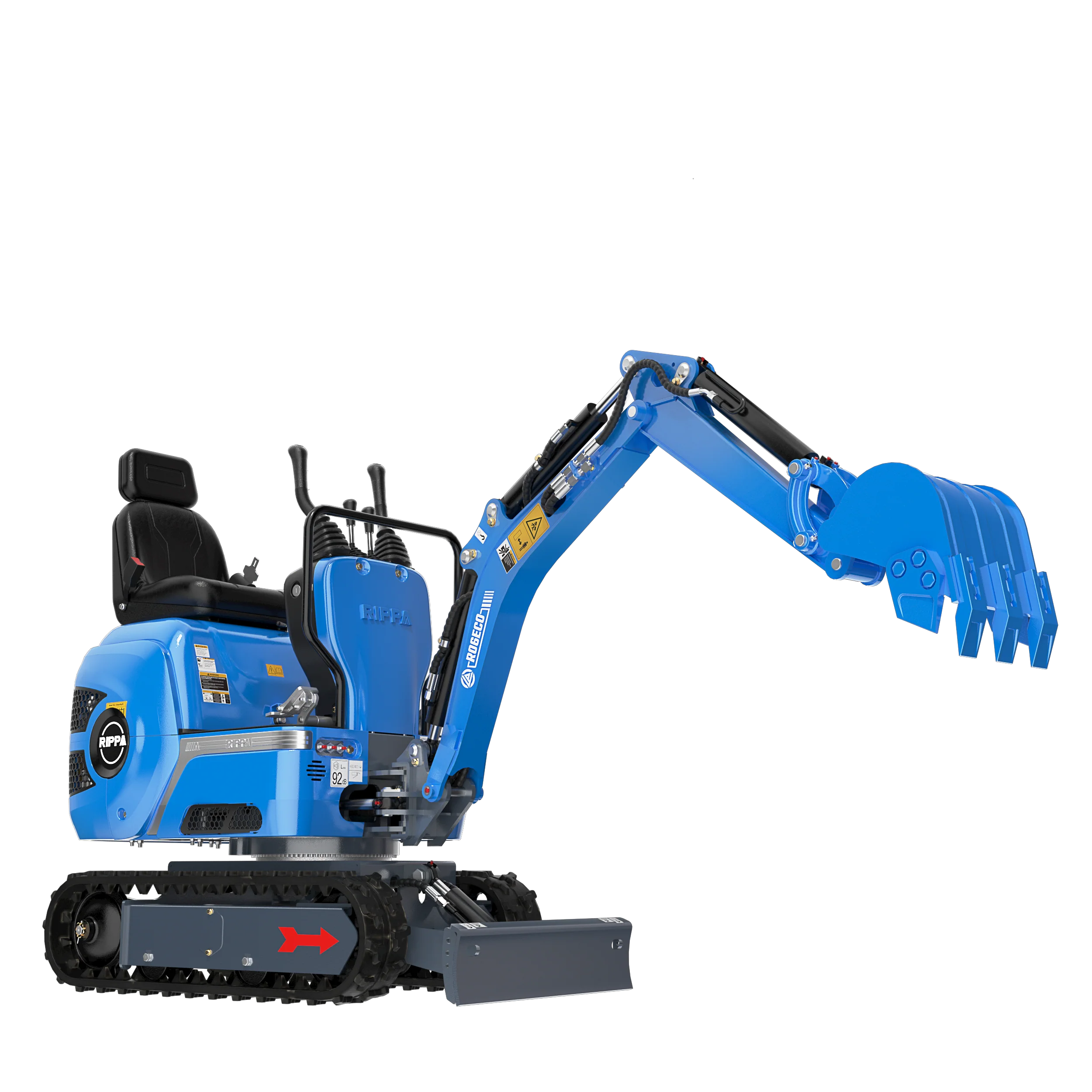

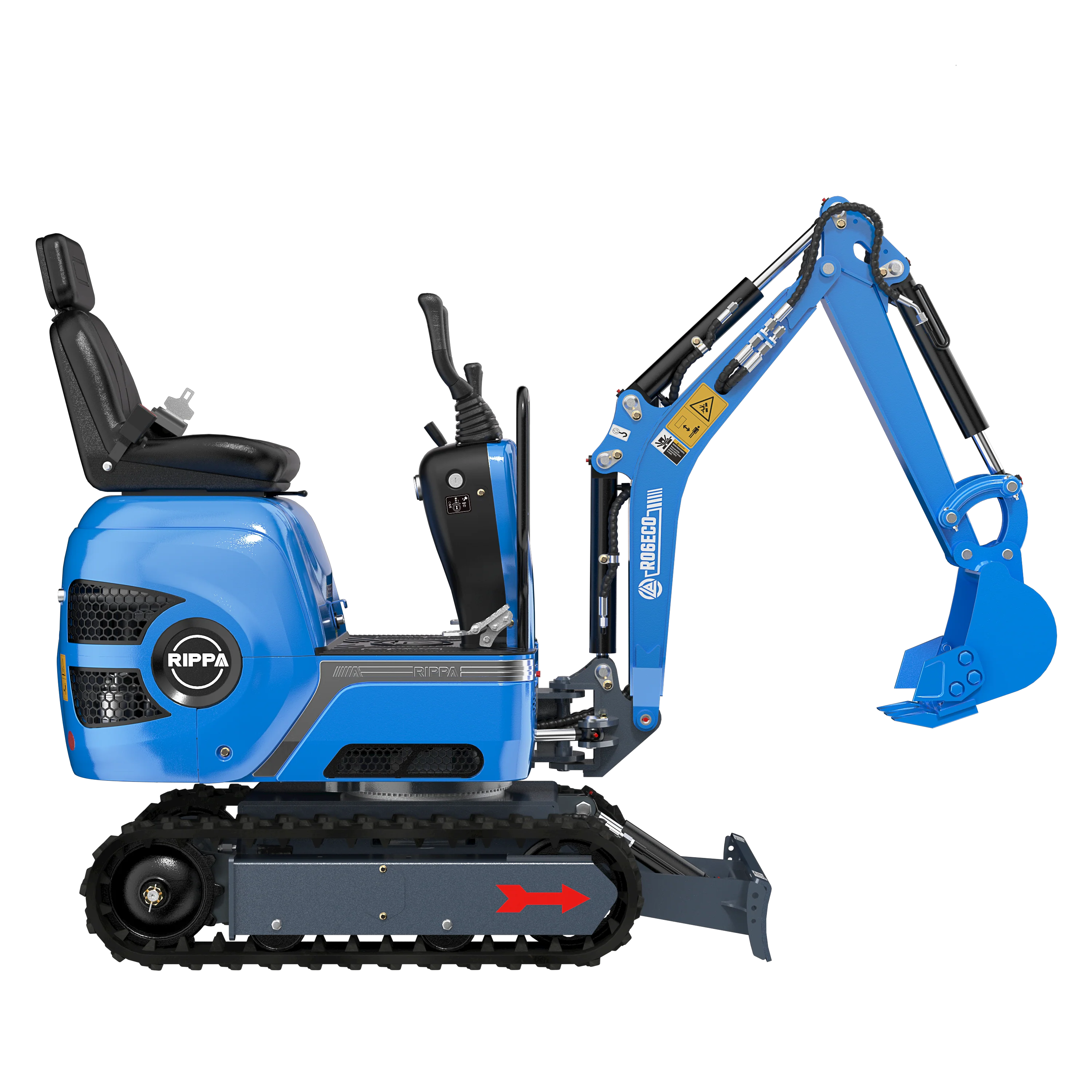

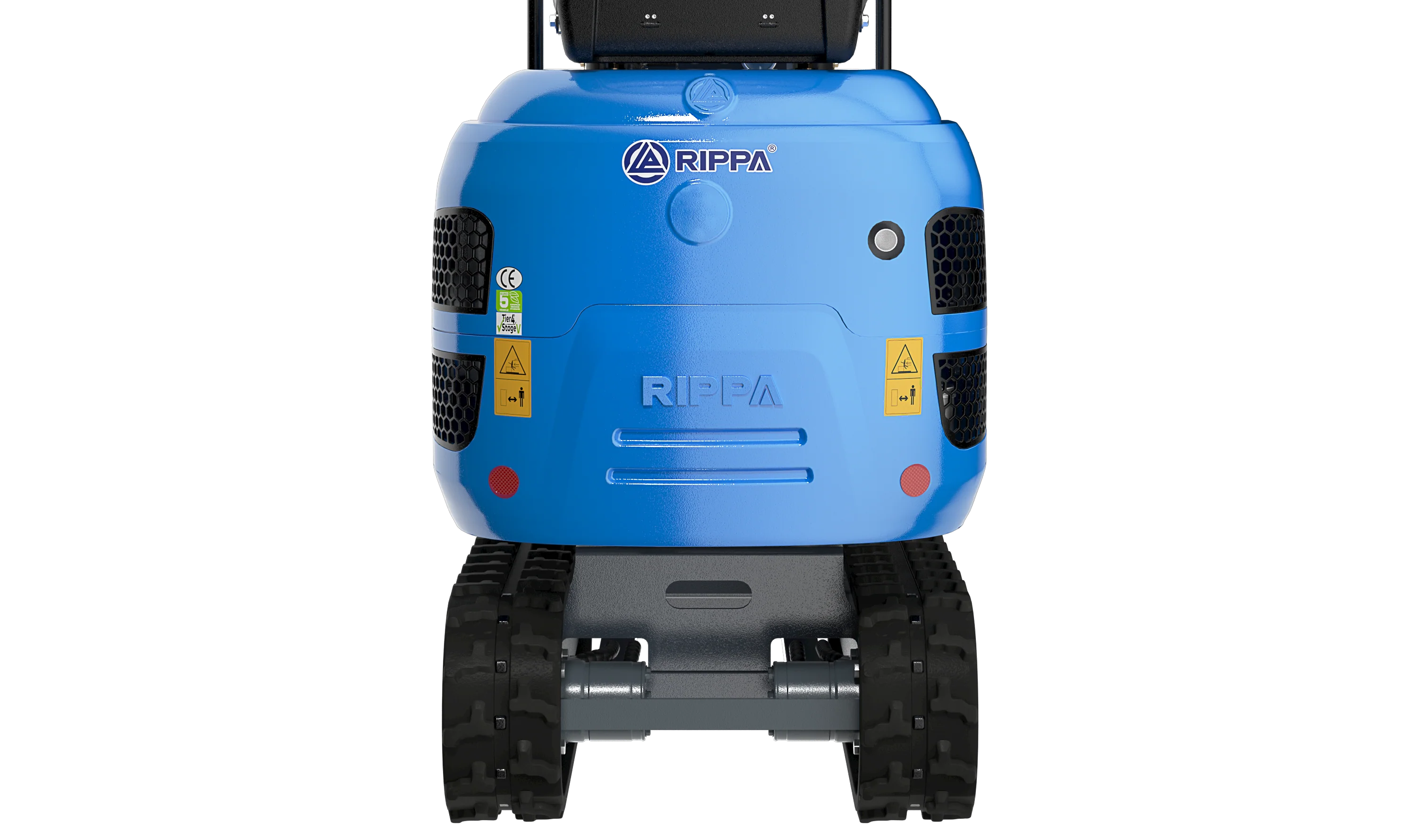

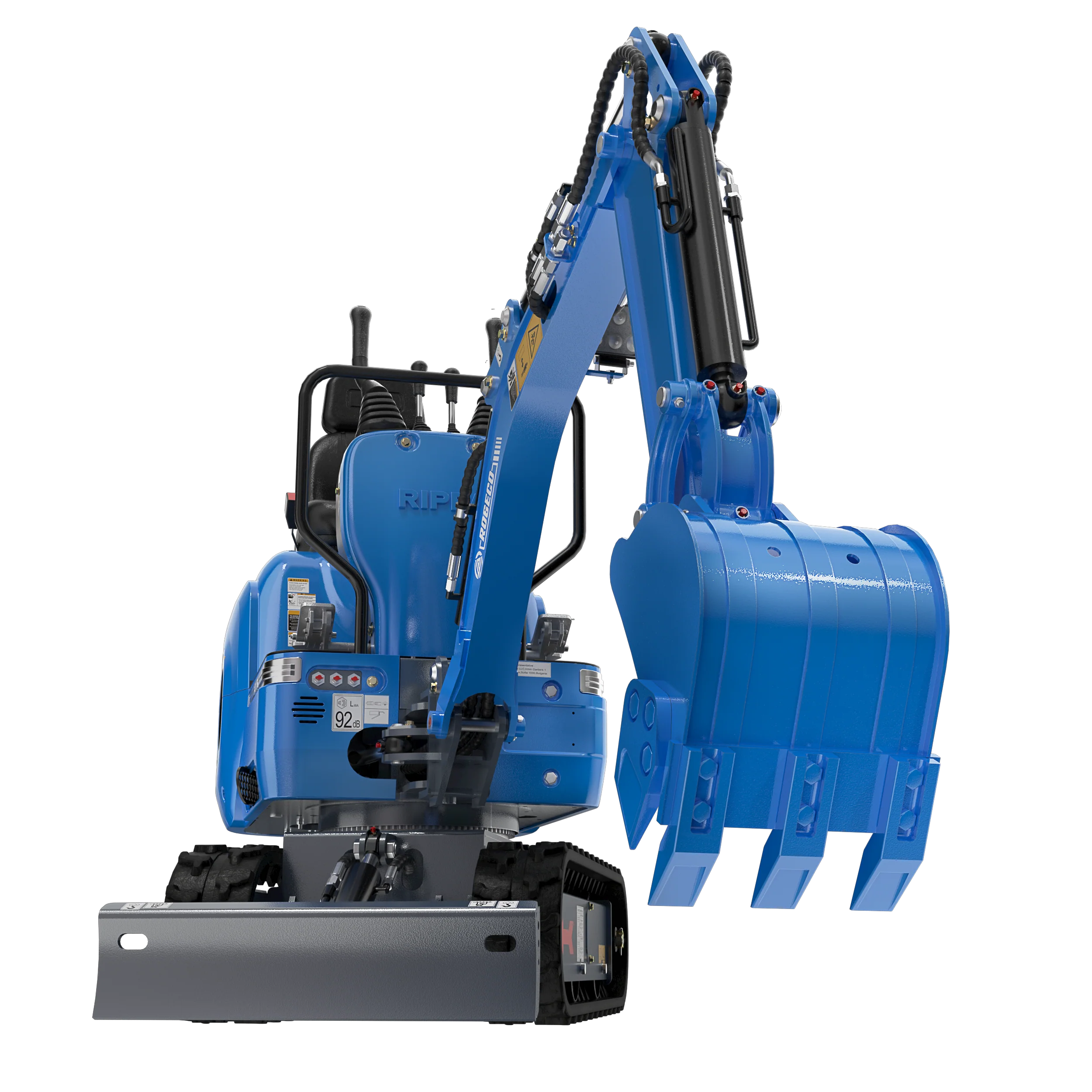

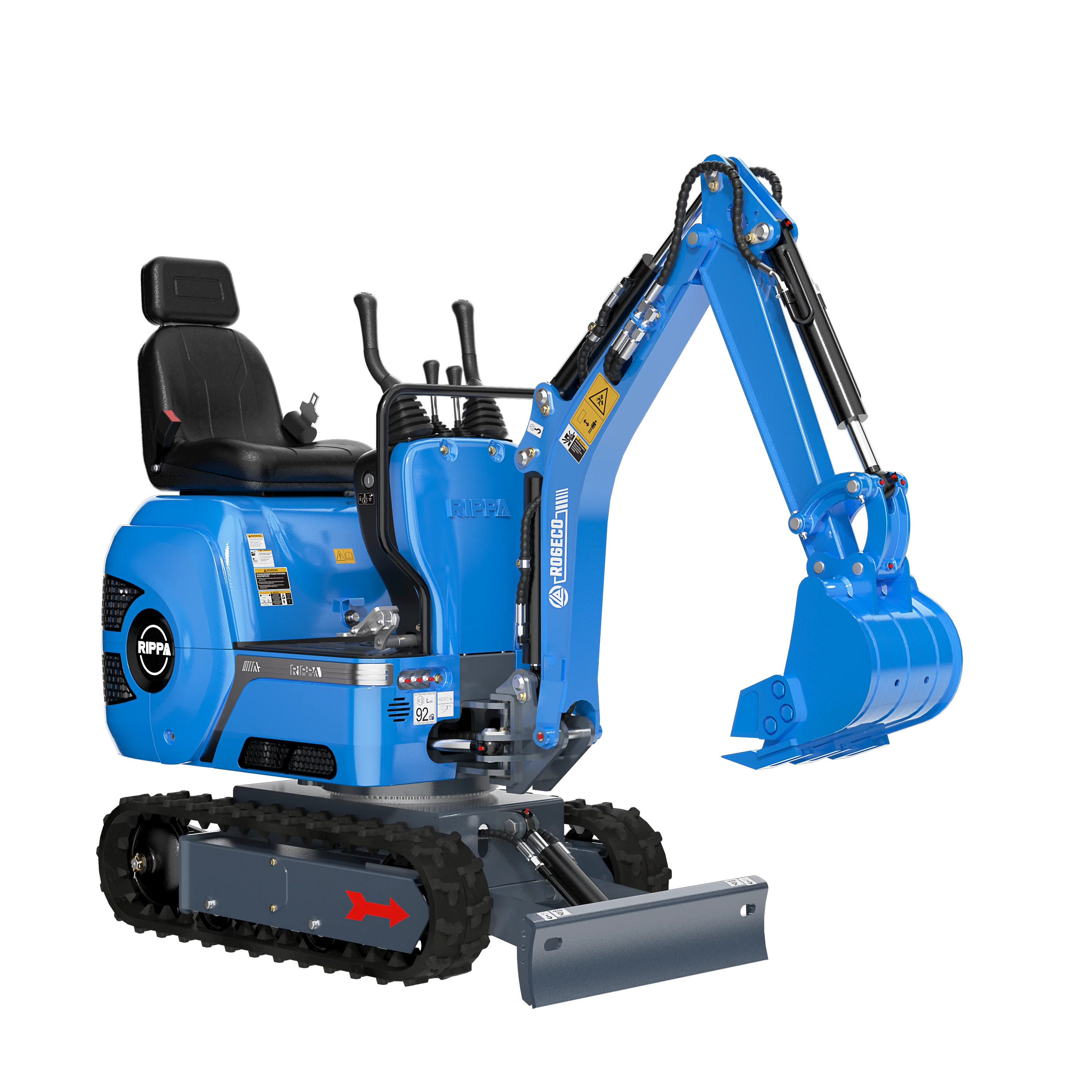

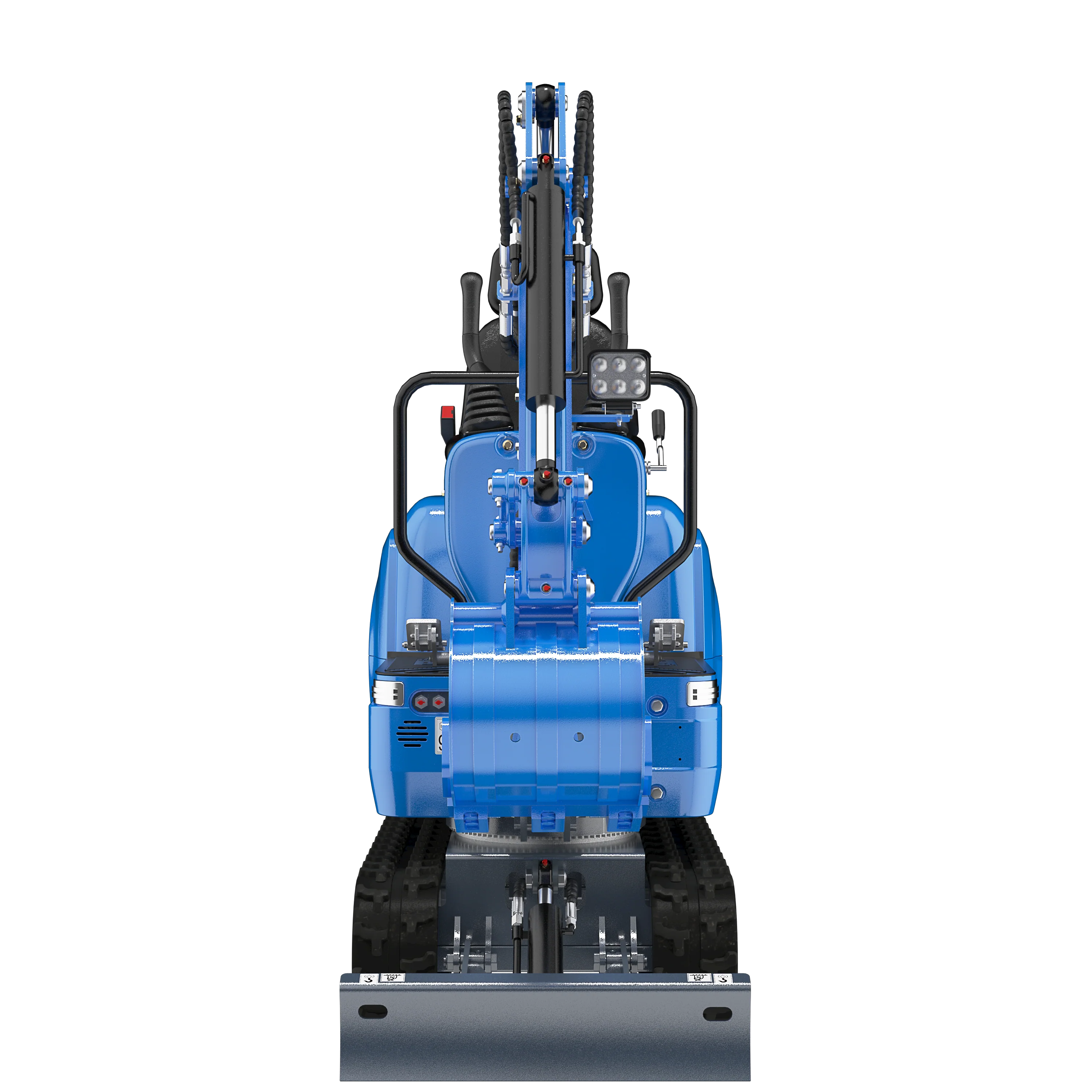

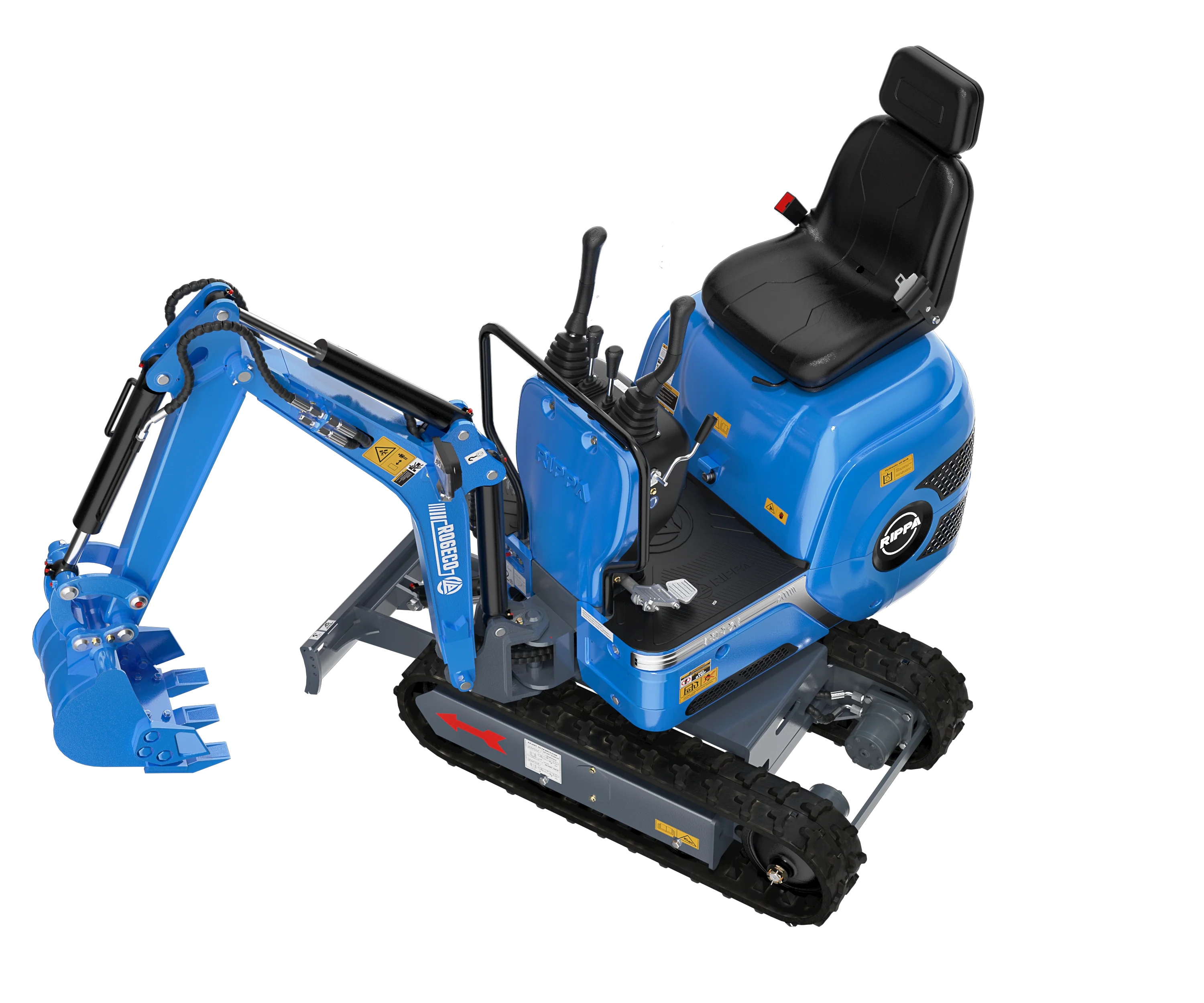

The Rippa R06 ECO is an ultra-compact mini excavator, ideal for tight job sites, landscaping, indoor work, and precise operations in confined spaces. Despite its small footprint, it delivers excellent stability, accessibility, and reliable performance for daily use.
Powered by a reliable Kubota diesel engine, the R06 ECO offers smooth operation, low fuel consumption, and long service life. With a digging depth of 1001 mm and an operating weight of 747 kg, it is perfectly suited for narrow passages, backyards, and sensitive environments.
Standard features:
✔ 30 cm bucket for precise digging
✔ Kubota diesel engine (Euro 5 / Stage V compliant)
✔ Ultra-compact design (only 747 mm width)
✔ LED work light for better visibility

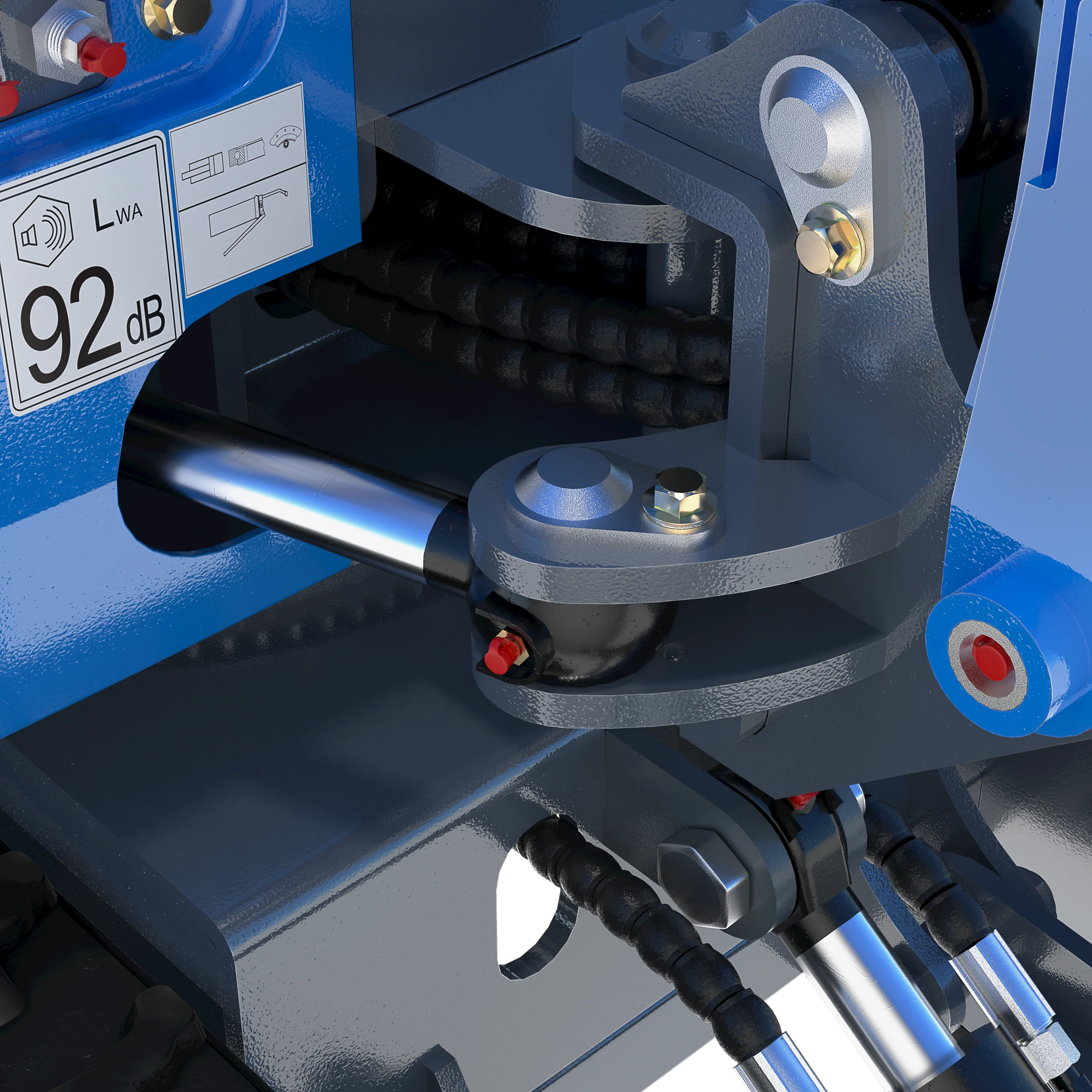

✔ Protected hydraulic system for safe operation

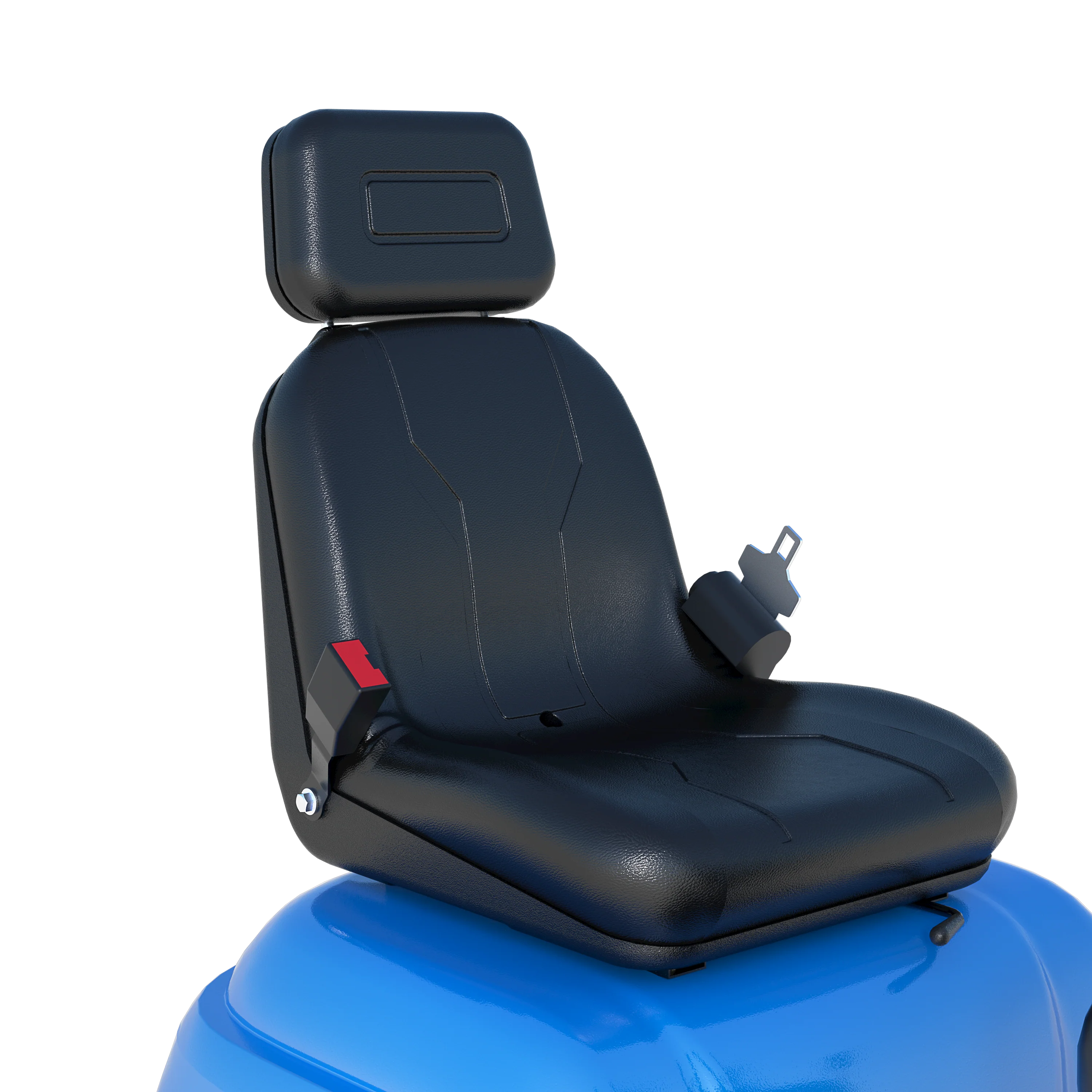

✔ Ergonomic seat and practical storage compartment
Additional attachments such as buckets or other accessories can be found in the “Accessories” section on our website.
R06 ECO – Performance Data
| General Performance | EU / US |
|---|---|
| Operating weight | 747 kg / 1647 lb |
| Bucket capacity | 0.014 m³ / 0.494 ft³ |
| Travel speed | 0–1.5 km/h / 0–0.93 mph |
| Gradeability | 30% / 30% |
| Max. digging force | 9.2 kN / 2068 lbf |
| Max. digging reach | 2565 mm / 101.1 in |
| Max. digging depth | 1001 mm / 39.4 in |
| Max. digging height | 2236 mm / 88.1 in |
| Max. dumping height | 1569 mm / 61.8 in |
| Boom swing angle | 70° / 70° |
| Engine | EU / US |
|---|---|
| Manufacturer | Kubota / Kubota |
| Model | Z482 / Z482 |
| Power (hp) | 11.2 hp / 11 hp |
| Power (kW) | 8.2 kW / 8.2 kW |
| Rated speed | 3000 rpm / 3000 rpm |
| Displacement | 0.479 L / 0.13 gal |
| Cylinders | 2 / 2 |
| Cooling | Water-cooled / Water-cooled |
| Engine oil capacity | 1.5 L / 0.396 gal |
| Fuel type | Diesel / Diesel |
| Fuel grade | 0 / -10 / 0 / -10 |
| Fuel consumption | 0.8–1.2 L/h / 0.8–1.2 L/h |
| Dimensions | EU / US |
|---|---|
| Transport width | 747 mm / 29.4 in |
| Transport height | 1594 mm / 62.8 in |
| Ground clearance (rear weight) | 401 mm / 15.8 in |
| Bucket width | 300 mm / 11.8 in |
| Boom length | 1800 mm / 70.9 in |
| Hydraulic System | EU / US |
|---|---|
| Max. flow rate | 18 L/min / 18 L/min |
| Control valve | 8-way manual multi-valve |
| Valve manufacturer | Taifeng |
| System pressure | 17 MPa |
| Max. system pressure | 18 MPa |
